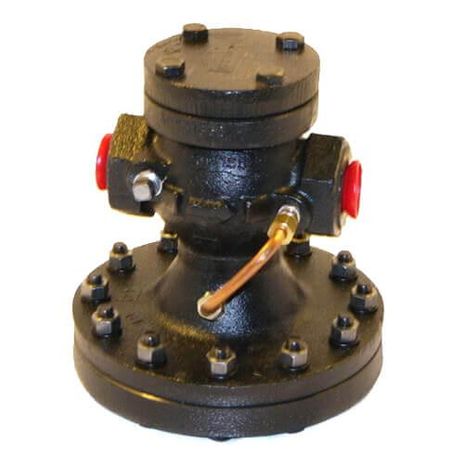

Hoffman 402442

¾” NPT Cast Iron Pressure Regulating Valve

Hoffman Specialty Series 2000 Model 2100 pressure regulating valve with a ¾” NPT connection and full port that consist of a main valve controlled by a single or combination of pilot control valves for steam service only. This valve is normally-closed and single-seated. It has an inlet pressure of 20 psi, a minimum differential pressure of 15 psi, a maximum pressure differential of 150 psi, and a maximum temperature of 450°F. It features a 2-ply stainless steel diaphragm provides greater accuracy of control over entire capacity range and a longer life, packless construction, positive travel stop and back up of diaphragm prevents over pressurizing from downstream (low-pressure) side, and maintains accurate and stable control of pressure or temperature.

Specifications:

• Model: 2100FP
• Part Number: 402442
• Valve Application: Steam
• Body Material: Cast Iron
• Piping Configuration: Straight
• Connection Size: ¾”
• Connection Type: NPT
• Max Pressure: 250 psi WSP
