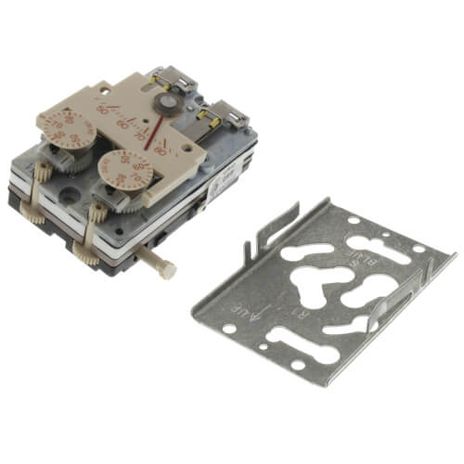

Siemens 194-3082

RETROLINE RSTAT,2-SPT,HC,DA/RA,°F,HWELL

The Powerstar Retroline Retrostat Pneumatic Room Thermostat converts most existing pneumatic room thermostats to a Powerstar 192 direct or reverse acting, 2-pipe, single or dual setpoint unit. Day/Night or Heat/Cool Retrostat is factory-calibrated to match the appropriate changeover pressure of the competitive thermostat.

Applications:

Retroline Retrostat kits are available for most 2-pipe applications in direct and reverse acting models, including:

• Single Temperature
• Day/Night
• Heat/Cool

Features:

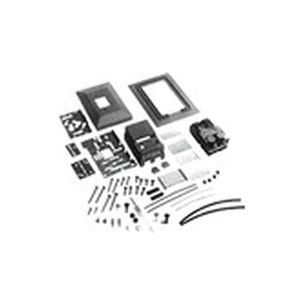

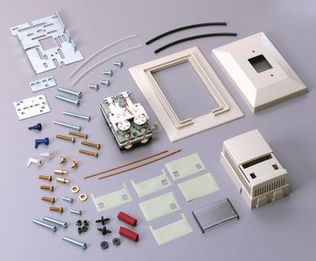

• Complete kit including Retrostat cover kit with exposed or concealed setpoint adjustment
• Setpoint dials available in Fahrenheit or Celsius scales
• Factory-calibrated for accuracy
• All installation hardware and calibration wrench provided.
• Fits into large format wall openings, using ?goof plate,? which is included.
• Integral, fi eld adjustable limit stops
• Test port for fast check of output pressure without removing the cover
• Field replaceable thermometer, setpoint dial(s), restrictor(s), and filter(s)
