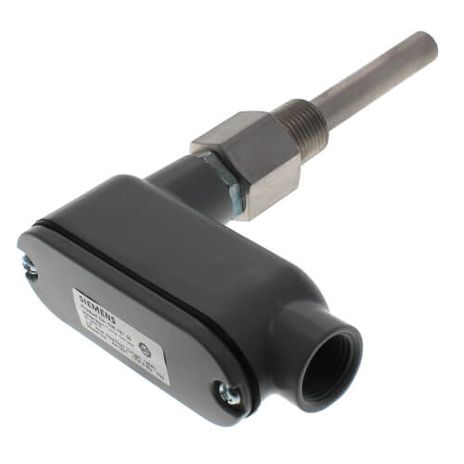

Siemens 536-767-25
SKU: CS906966MPN: 536-767-25UPC/EAN: 804766002045
Immersion Temperature Sensor, 4-20mA, 30-250F, 2.5 Inch Probe
$113.75
Unit5+ Units Available at Factory - Ships Same/Next Business Day
Product Details
Liquid immersion temperature sensor, 2.5-inches (6.4 cm) long. Temperature range from 30º to 250ºF and a 4 to 20 mA output.
Attributes
| Attribute | Value |
|---|---|
| Material Housing | Not for use with potable water |
| Measuring Range | 30 to 250 °F |
| Medium Temperature | 30…250 ºF |
| Medium Temperature F Max | 250 ºF |
| Medium Temperature F Min | 30 ºF |
| Operating Voltage | 18 to 36Vdc or 24Vac ± 20 % |
| Sensing Element | Pt100 |
| Sensor Application | Pipe |
| Sensor Connection Type | Leads |
| Sensor Detection | Temperature |
| Sensor Mounting Type | Wet/Dry Media |
Attributes
| Material Housing | Not for use with potable water |
| Measuring Range | 30 to 250 °F |
| Medium Temperature | 30…250 ºF |
| Medium Temperature F Max | 250 ºF |
| Medium Temperature F Min | 30 ºF |
| Operating Voltage | 18 to 36Vdc or 24Vac ± 20 % |
| Sensing Element | Pt100 |
| Sensor Application | Pipe |
| Sensor Connection Type | Leads |
| Sensor Detection | Temperature |
| Sensor Mounting Type | Wet/Dry Media |
Specifications
| SKU | CS906966 |
|---|---|
| MPN | 536-767-25 |
| UPC/EAN | 804766002045 |
