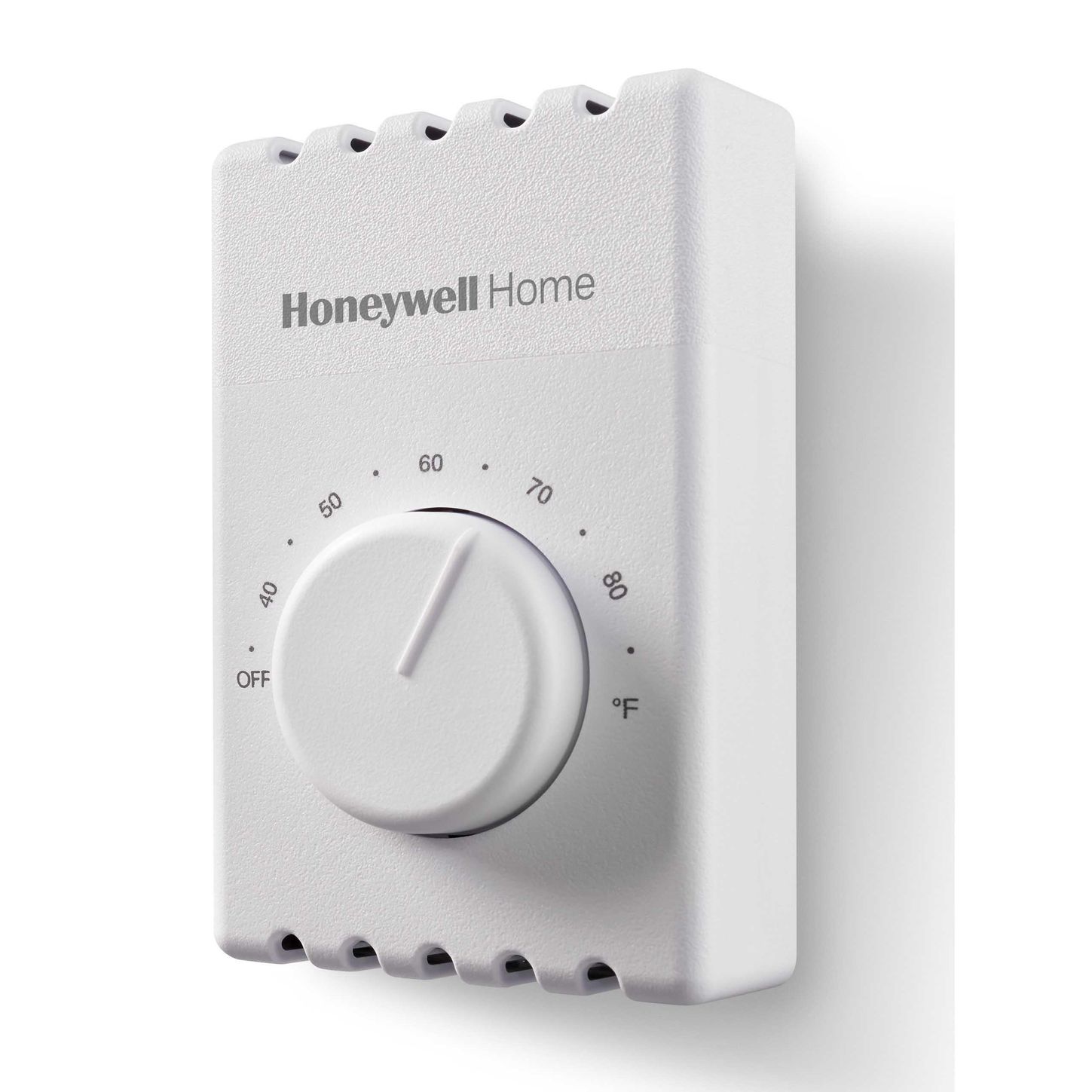

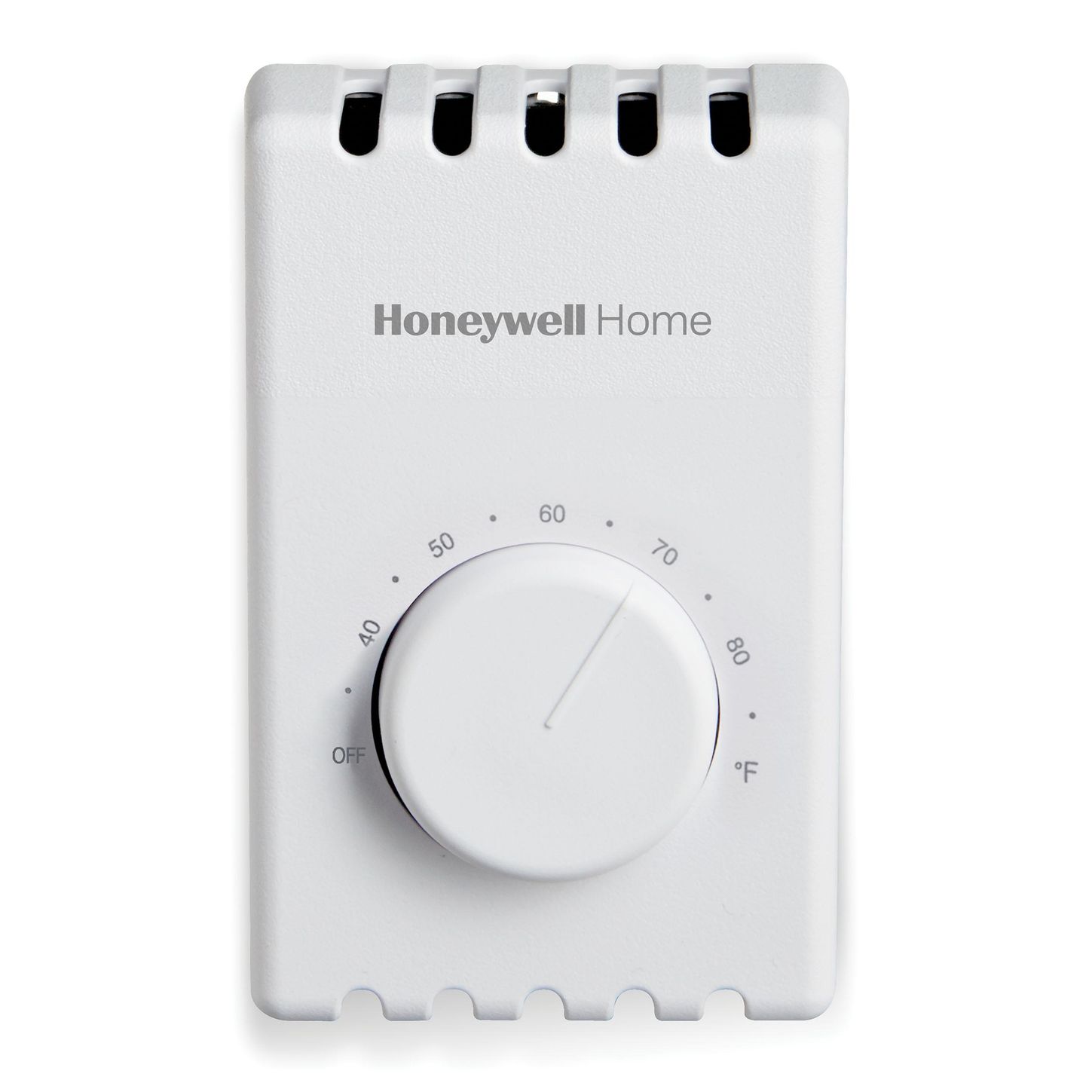

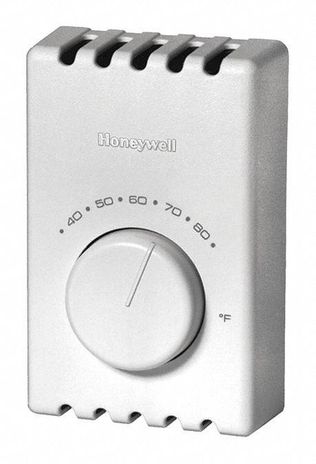

Resideo T410B1004

Electric Heat Thermostat, White - Baseboard

Economy thermostats that provide reliable line voltage control of resistive rated electric heating equipment. Snap-action switch makes heating circuit on temperature fall.

Specifications

• Description: White Electric Heat Thermostat for Electric Baseboard Heat
• Application: Baseboard
• Programmability: Non-Programmable
• Mounting: Vertical
• Color: White
• User Interface: Dial
• Power Method: Hardwired
• Stages: 1 Heat
• Electrical Connections: 6” (150 mm) copper lead wires, suitable for connecting to aluminum wiring if approved CO/ALR solderless connectors are used.
• Switching Action: DPST
• Accuracy (C): 2°C
• Dimensions: 4-½” high x 2-¾” wide x 2-¼” deep
• Dimensions (mm): 115 mm high x 70 mm wide x 57 mm deep
• Amps (120V): 22
• Amps (208V): 22
• Amps (240V): 22
• Amps (277V): 19

Features

• Replace virtually any two-wire (T410A) or four-wire (T410B) line voltage wall-mounted electric heating thermostat.
• Easy to install. 6” (150 mm) color-coded leads.
• Include long-lasting Micro Switch mechanism.
• Rugged, plastic mounting base and one-piece cover with vents.
• Ideally suited to new construction applications.
