All ProductsSchneider Electric

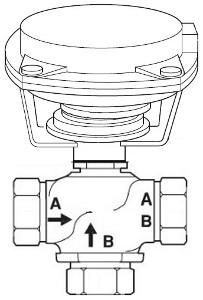

Schneider Electric VK4-7313-302-4-08

SKU: CS8876MPN: VK4-7313-302-4-08UPC/EAN: 711426046854

VB: 1 in, 3W Mix, Globe, NPT, BR, 14 cv, 30 PSI, Act (MK-4611): Pneu, 2Pos/Prop, 5-10 PSIG, SR, NC, Air NPT, Linear, N1, PP

Schneider Electric VK-7313-301-4-04, VK-7313-301-4-06, VK-7313-301-4-08, VK-7313-301-4-11, VK-7313-302-4-04, VK-7313-302-4-06, VK-7313-302-4-08, VK-7313-302-4-09, VK-7313-302-4-10, VK-7313-302-4-11, VK-7313-303-4-06, VK-7313-303-4-08, VK-7313-303-4-09, VK-7313-303-4-10, VK-7313-303-4-11
Contact us for pricing and availability

Product Details

Valve Assembly:

  • Body Size: 1 in/li>* Configuration: 3-Way Mixing
  • Type: Globe
  • Connection: NPT
  • Stem Flow Action: Stem down flow A to AB
  • Material Trim: Brass
  • Flow Coefficient: 14 cv
  • Close-Off Pressure: 30 PSI
  • Actuator Type: Pneumatic
  • Control Signal: 2-Position (On/Off), Proportional
  • Control Spring Range: 5 to 10 PSIG
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Up/Retract A closed
  • Leads and Connections: ⅛ in Air NPT
  • Mechanical Movement: Linear
  • Protection Rating: NEMA 1

Assembly Components:

  • Valve Body: VB-7313-0-4-08
  • Valve Range: Venta
  • Valve Linkage: AV-401
  • Actuator: MK-4611
  • Actuator Comment: Comes with a positive positioner (AK-42309-500)
  • Positive Positioner: AK-42309-500

Product Alert: Not for use with steam

Attributes

Actuator linear
Ambient Air Temperature For Operation -28.8-104.4 °C
Ambient Air Temperature For Storage -40-104.4 °C
Body Material bronze
Control Type manual override with 5/32 allen wrench
Diaphragm Effective Area 11 in²
Ip Degree Of Protection IP10
Material die cast aluminium: housing
Operating Fluid Temperature -7-138 °C
Product Destination globe valve
Product Or Component Type valve-actuator assembly
Seat Leakage Port A: Class IV (0.01 %) Port A: Class V Port B: Class III (0.1 %)
Seat Material Port A: bronze Port B: bronze
Seating Seal Material Port A:EPDM (ethylene propylene diene monomer) Port B:metal to metal
Targeted Region North America.
Taxoclass Id PTC_D54040_XXX

Specifications

SKUCS8876
MPNVK4-7313-302-4-08
UPC/EAN711426046854
