Schneider Electric VB-7313-0-4-06
SKU: CS858805MPN: VB-7313-0-4-06UPC/EAN: 711426053029

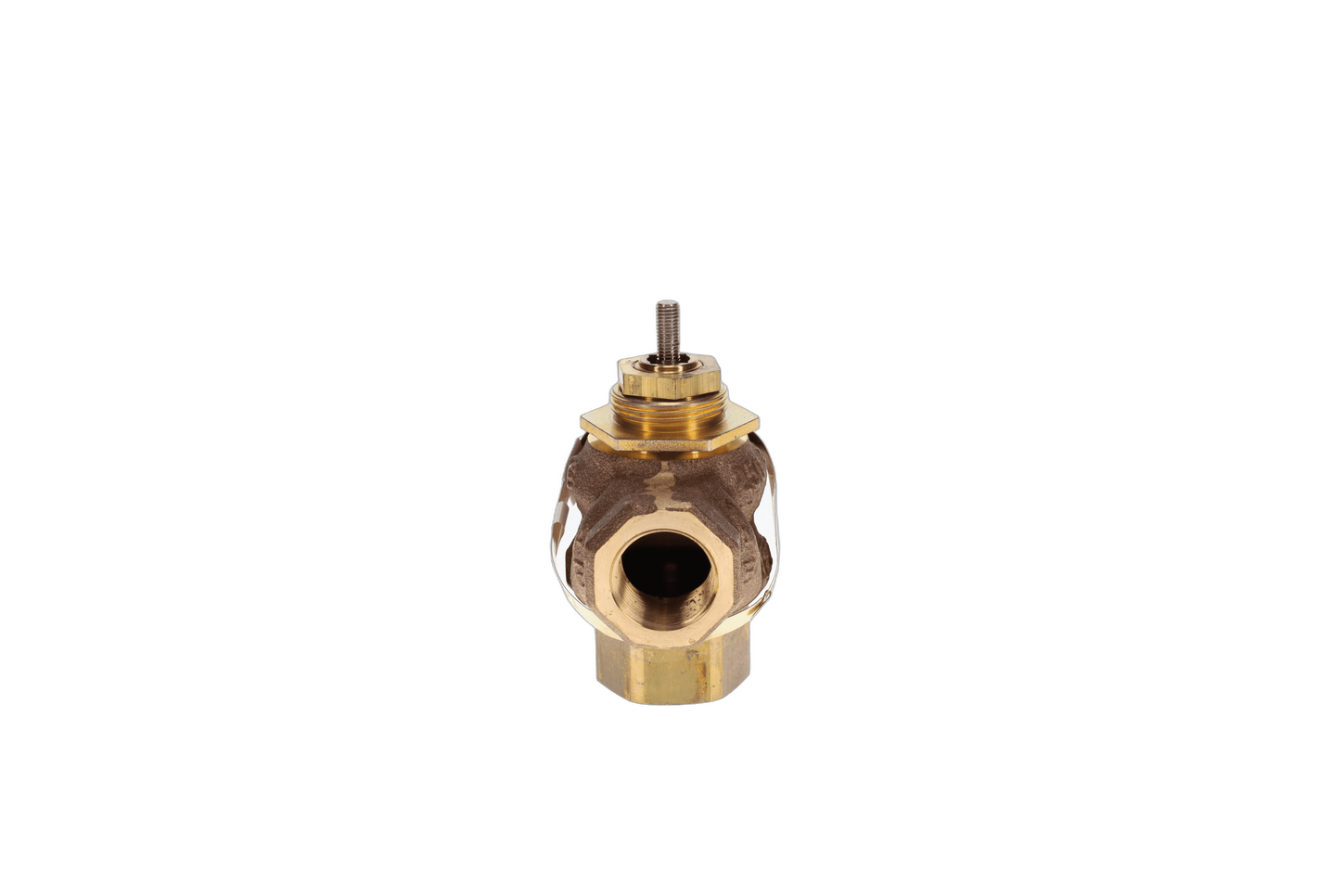

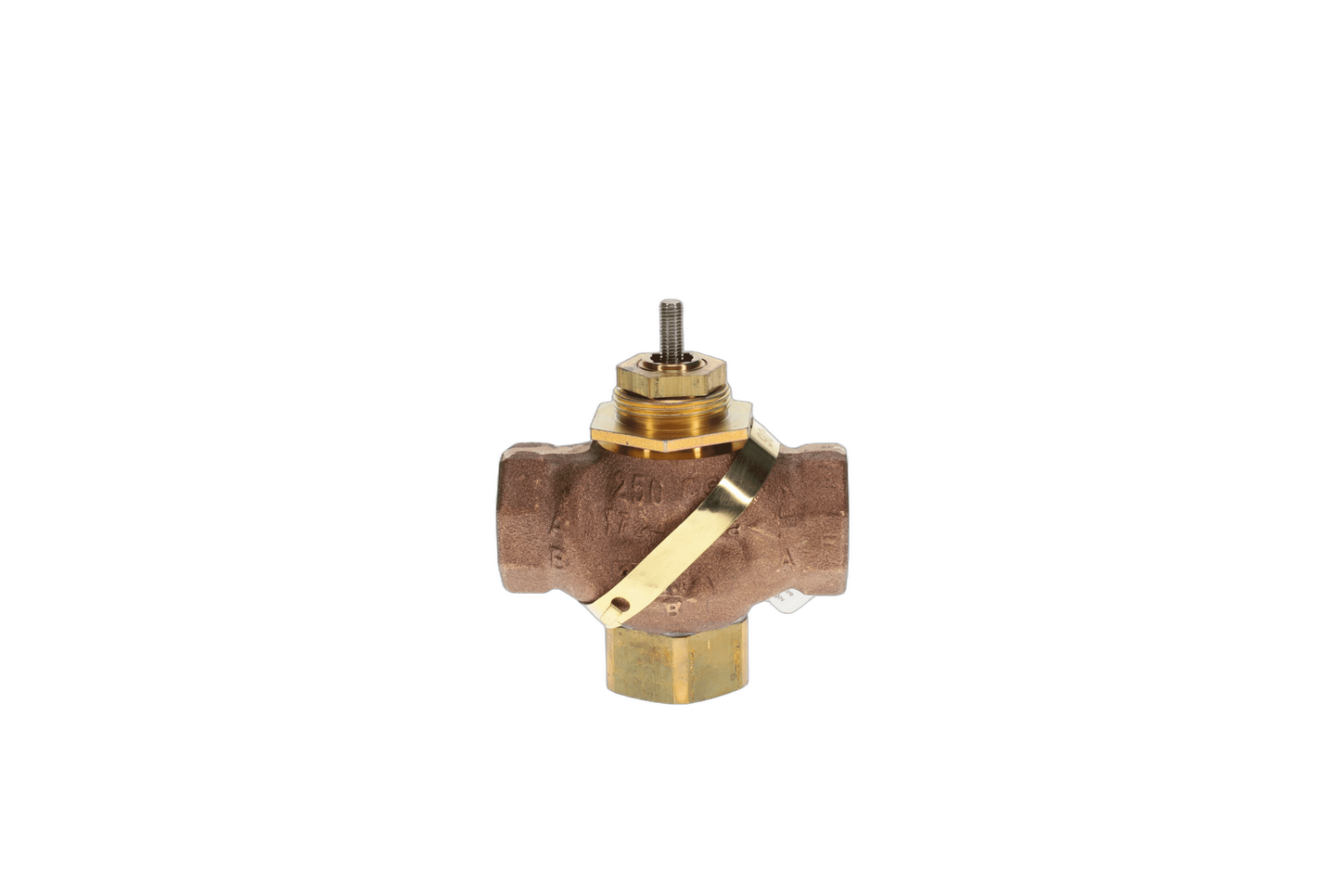

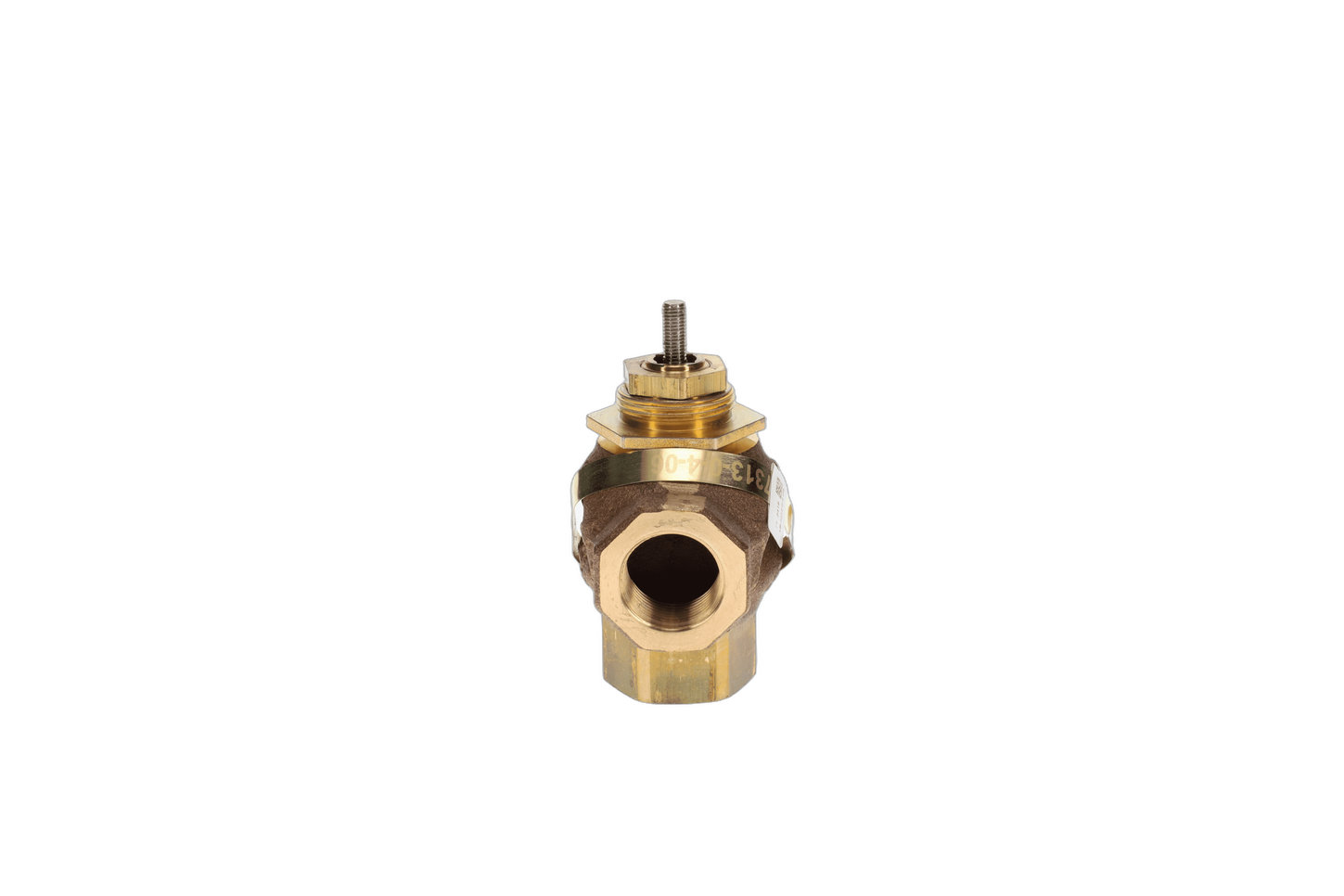

Venta, Globe Valve, ¾ in, 3-way mixing, straight threaded NPT, stem up closes port A, brass trim, 7.5 Cv
$230.39
Unit5 in stock
Product Details
Valve Body (VB-7313-0-4-06):
- Body Size: ¾ in
- Configuration: 3-Way Mixing
- Type: Globe
- Connection: NPT
- Stem Flow Action: Stem down flow A to AB
- Material Trim: Brass
- Flow Coefficient: 7.5 cv
- Control Media: Glycol 25 to 60%, Water
- Product Line: Schneider Electric
- Product Range: Venta
- Product Series: VB-7300
Product Alert: Not for use with steam
Attributes
| Body Material | bronze |
| Operating Fluid Temperature | -7-138 °C |
| Product Or Component Type | valve |
| Seat Leakage | Port A: Class IV (0.01 %) Port A: Class V Port B: Class III (0.1 %) |
| Seat Material | Port A: bronze Port B: bronze |
| Seating Seal Material | Port B:metal to metal PTFE (polytetrafluoroethylene) |
| Targeted Region | North America. |
| Taxoclass Id | PTC_D54015_XXX |
Specifications
| SKU | CS858805 |
|---|---|
| MPN | VB-7313-0-4-06 |
| UPC/EAN | 711426053029 |
