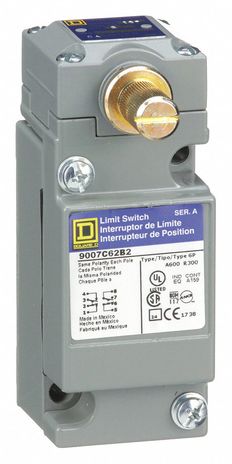

Square D 9007-C62B2

LIMIT SWITCH 600V 10 AMP C+OPT

Note: Due to a rebranding at Schneider Electric, this product now falls under the Telemecanique brand. The product itself remains unchanged

Schneider Electric / Square D 9007C62B2 Limit Switch; 2NO-2NC, 10 Degree Pre-Travel, Spring Return

Specifications:

• Limit Switch Style: Heavy Duty Limit Switch
• Basic Actuator Style - Limit Switch: Rotary
• Actuator Style - Limit Switch: Rotary, No Lever
• Actuator Location - Limit Switch: Side
• Item: Heavy Duty Limit Switch
• AC Contact Rating - Limit Switch: 10A @ 600V
• DC Contact Rating - Limit Switch: 10A @ 600V
• Contact Form - Switches: 2NC/2NO
• Body Height - Limit Switch: 2.50”
• Body Width - Limit Switch: 0.83”
• Body Depth - Limit Switch: 1.14”
• Boot Sealed Actuator - Limit Switch: No
• Threaded for Panel Mounting - Limit Switch: No
• Body Style - Limit Switch: Miniature
• NEMA Rating: 1, 2, 4, 6, 6P, 12, 13
• Wiring Entry: ½” NPT
• Electrical Connection: Screw Terminals
• IP Rating: 67
• Movement: CW, CCW
• Travel: Total Travel 90 Degrees
• Series: 9007C
• Operating Temp. Range: -20 Degrees to 185 Degrees F
• Body Material: Zinc
• Operating Force: 4.00 in.-lb
• Standards: UL, CSA, CE
