Eaton E58-30DP150-HDP

Name: Eaton E58-30DP150-HDP
Brand: Eaton
SKU: CS838180
Price: 1061.39 USD
Availability: OutOfStock

SKU: CS838180MPN: E58-30DP150-HDPAlternate Part #s: E58-30DP150-HDPEAT-E58-30DP150-HDPUPC/EAN: 782114014967

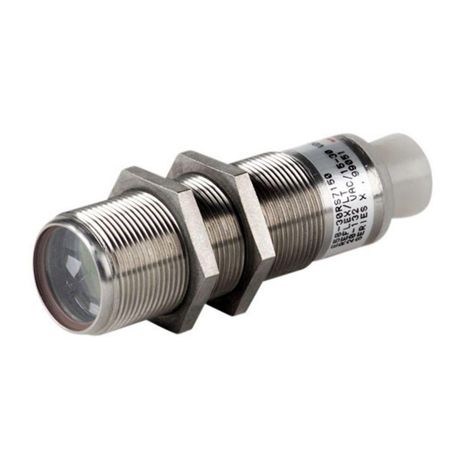

Eaton harsh-duty sensor

Eaton E58-30DP150-DDP, E58-30DP150-DLP, E58-30DP150-HLP, E58-30RP10-HDP, E58-30RS18-HDP, E58-30RS18-HLP

Product Details

Eaton harsh-duty sensor, E58 Tubular 30mm Photoelectric Sensor, 1.18 dia, dist. 6 In., PNP and NPN Open Collector, PNP: 100 mA, NPN: 100 mA at 30Vdc, 4 Pin Pigtail M12 Connector input, Latching short circuit, Background Suppression.

Attributes

Cable Type	Polyvinyl Chloride (PVC)
Connection	4-pin pigtail M12 connector
Contact Configuration	PNP and NPN open collector
Contact Rating	PNP: 100 mA, NPN: 100 mA at 30Vdc
Enclosure Material	Stainless steel
Environmental Rating	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP69K
Input Voltage	10-30 Vdc
Led Indicator	Output status: red
Maximum Dc Current	PNP: 100 mA, NPN: 100 mA
Operating Mode	Background suppression
Operating Temperature Max	131 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Protection	Latching short circuit
Sensor Type	Back ground suppression
Switch Type	Photoelectric
