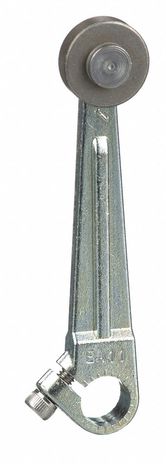

Square D 9007EA11

Name: Square D 9007EA11
Brand: Square D
SKU: CS804965
Availability: InStock

SKU: CS804965MPN: 9007EA11UPC/EAN: 785901868309

Limit switch lever, 9007, arm 3in c

3 in stock

Product Details

Limit Switch Lever Arm Actuator Type Standard Roller For Use With 9007AW Mfr No 9007C Arm Length 3 in Roller Position Front Roller Dia 0.75 in Roller Width 0.25 in Arm Material Cast Zinc Roller Material Oil Impregnated Sintered Iron Arm Width Tapered Arm Depth 0.31 in

Attributes

Ambient Air Temperature For Operation	-20-185 °F
Ambient Air Temperature For Operation 1	-20-185 °F
Ambient Air Temperature For Storage	-20-185 °F
Associated Complete Product	9007C# #9007AW
Associated Head	9007T10# #9007C# #9007A# #9007N# #9007T5# #9007B
Device Short Name	9007C
Environmental Characteristic	standard environment
Movement Of Operating Head	rotary
Positive Opening	without
Product Or Component Type	limit switch lever
Range Of Product	9007
Series Name	heavy duty
Switch Actuation	by 30° cam
Type Of Approach	lateral approach
