Siemens GCA161.1P/B
SKU: CS7994MPN: GCA161.1P/BUPC/EAN: 804766015649
SR 160 lb-in, 24Vac/dc, 0-10Vdc Control, 90s Run, Feedback, Plenum, 8pk
$3,263.96
UnitAvailable on backorder
Product Details

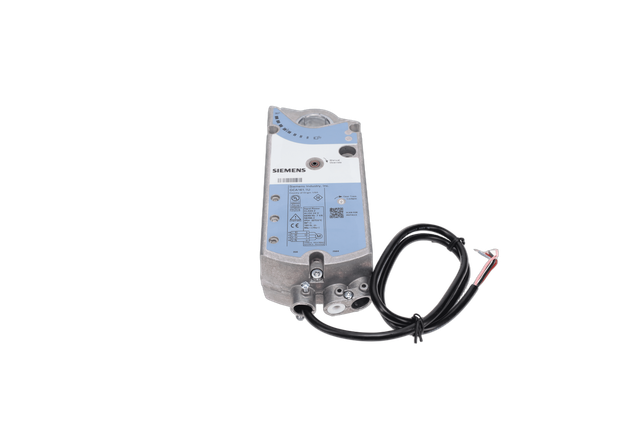

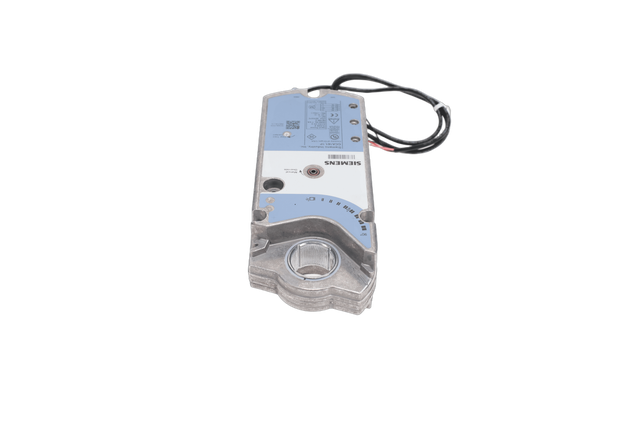

OpenAir™ GCA Series Electric Damper Actuator, rotary, spring return, 160 lb-in (18 Nm), 24 Vac/dc, 0 to 10 Vdc control, 90 sec run time, dual auxiliary switches, plenum rated, bulk pack 8
Attributes
| Actuation Style | Rotary |
| Actuator Type | Spring return |
| Ambient Temperature Operation | -32…55 °C; -25…130 ºF |
| Auxiliary Switch | No |
| Connection Cable | 18 AWG |
| Control Or Fire Smoke Type | Control Damper |
| Control Signal | 0…10 Vdc |
| Fail Safe | Yes |
| Frequency | 50/60 Hz |
| Material Housing | NEMA 2, die-cast aluminum alloy enclosure, IP54 according to EN 60 529 |
| Operating Voltage | 24 VAC;24 VDC |
| Plenum Or Standard Rating | Plenum |
| Position Feedback | Yes |
| Positioning Time | Open:90 s;Close:15 s |
| Power Consumption | Running: 7 VA / 5 W, Holding: 5 VA / 3 W |
| Supply Voltage | 24 VAC/DC |
| Torque | 160 lb-in |
Specifications
| SKU | CS7994 |
|---|---|
| MPN | GCA161.1P/B |
| UPC/EAN | 804766015649 |
