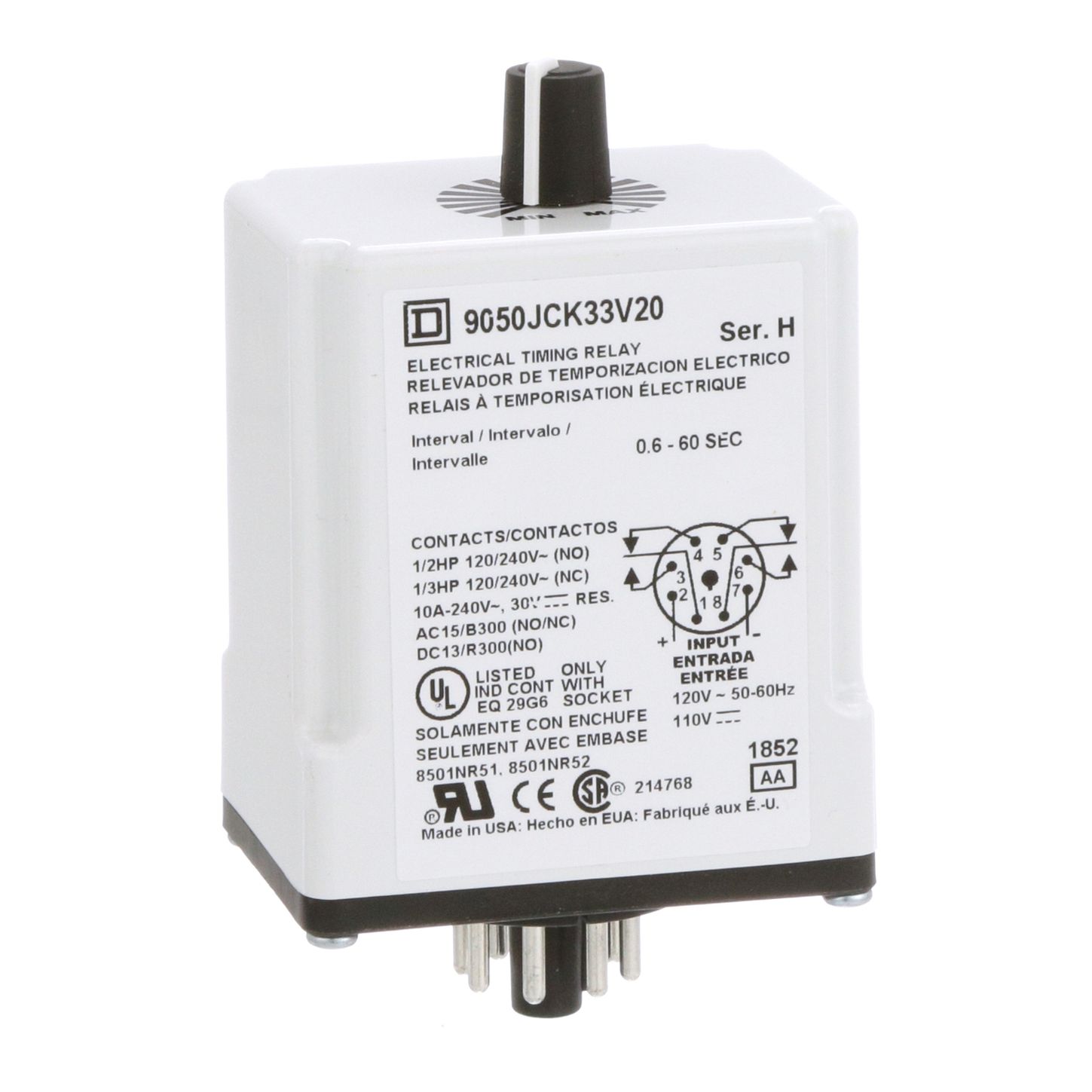

Square D 9050JCK33V20

Timing Relay, Type JCK, plug In, interval, adjustable time, 0.6 to 60 seconds, 10A, 240 VAC, 120 VAC/110 VDC

Timing Relay, Type JCK, plug In, interval, adjustable time, 0.6 to 60 seconds, 10A, 240 VAC, 120 VAC/110 VDC

• Product range : 9050JCK
• product type : Timer
• Timing mode : Interval
• Timing range : 0.6...60 s
• Supply voltage : 120 V AC, 110 V DC
• Power consumption : 2 VA
• Current rating : 10 A
• Switch function : DPDT
• Contact composition : 2 NO + 2 NC
• Contact material : Silver nickel
• Maximum switching voltage : 240 V AC
• Mounting type : Socket
• Number of pins : 8
• Shape of pins : Tubular
• For use with : 8501NR52, 8501NR51
• Certifications : CE
• UL Recognized : UL Listed
• Ambient temperature range - operational : -18…150 °F (-28…66 °C)
• Height : 2.40 in (61 mm)
• Maximum Width : 1.69 in (43 mm)
• Maximum Depth : 4.09 in (104 mm)
