Eaton 14150RL04
SKU: CS77948MPN: 14150RL04Alternate Part #s: 14150RL04EAT-14150RL04UPC/EAN: 782113011080
Eaton OEM Prism 18mm tubular photoelectric sensor
Contact us for pricing and availability
Product Details
Eaton OEM Prism 18mm tubular photoelectric sensor, Right Angle, dist 15 Ft., Iso SS Relay, 80 mA at 132 Vac/110 mA at 132Vdc, 4 Pin Dual Key Micro, 20–132 Vac/15-30 Vdc input
Attributes
| Cable Type | Polyvinyl Chloride (PVC) |
| Connection | 4-pin dual key micro connector |
| Contact Configuration | Isolated solid state relay |
| Contact Rating | 80 mA at 132 Vac / 110 mA at 132Vdc |
| Enclosure Material | Lens: polycarbonate Cable jacket: PVC Body: structural polyurethane foam |
| Environmental Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13 |
| Input Voltage | 20-132 Vac, 15-30 Vdc |
| Led Indicator | Output status: red |
| Maximum Ac Current | 80 mA |
| Maximum Dc Current | 110 mA |
| Operating Mode | Non polarized retroreflective |
| Operating Temperature Max | 131 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Current limited for loads less than 32 Vac/dc |
| Sensor Type | Retroreflective |
| Switch Type | Photoelectric |
Specifications
| SKU | CS77948 |
|---|---|
| MPN | 14150RL04 |
| Alternate Part #s | 14150RL04, EAT-14150RL04 |
| UPC/EAN | 782113011080 |
You may also like
Eaton 14151RL04
$221.60UnitEaton 14151AD04
Contact us for pricing and availabilityEaton 14151AL04
Contact us for pricing and availabilityEaton 14151RD04
Contact us for pricing and availabilityEaton 14150AD04
Contact us for pricing and availabilityEaton 14150AL04
Contact us for pricing and availabilityEaton 12155AD04
Contact us for pricing and availabilityEaton 12155AL04
Contact us for pricing and availabilityEaton 13150RL04
$212.81UnitEaton 12155RD04
Contact us for pricing and availabilityEaton 12155RL04
Contact us for pricing and availability

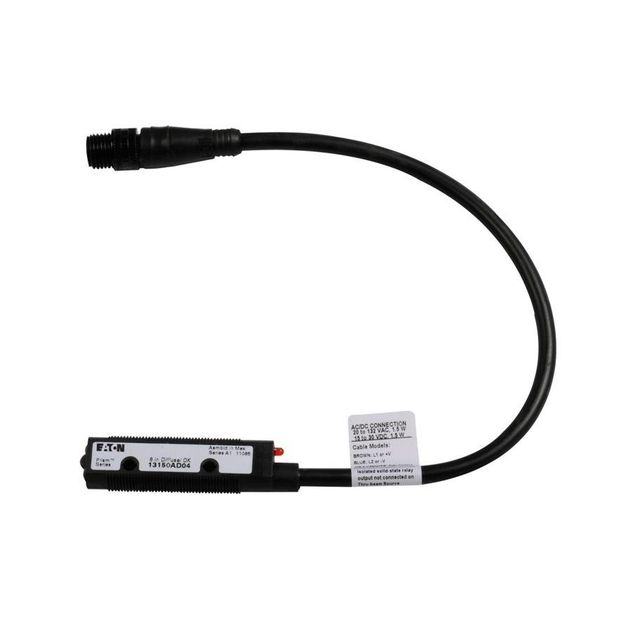

Eaton 13150AD04
