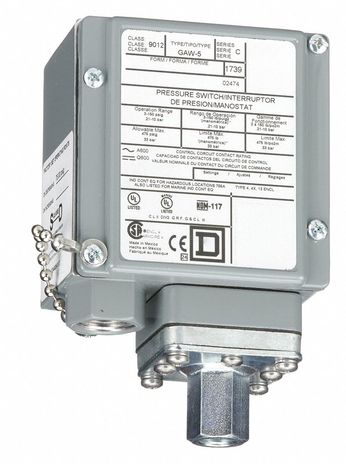

Telemecanique 9012GAW5

SKU: CS775839MPN: 9012GAW5UPC/EAN: 785901024743

9012G, pressure switch 9012 g, adjustable scale, 2 thresholds, 3.0 to 150 PSIG

$429.88
Unit
2 Units Available at Factory - Ships Same/Next Business Day
remove
add

Product Details

Pressure Switch:

  • Type: G* Used in pneumatic or hydraulic systems on a wide variety of machine and process applications to protect the equipment and control/monitor the system pressure* UL Listed File Number: E12442 CCN NOWT - CSA Certified File Number: LR26817 Class 3218 02 - CE Marked* Enclosure Rating: NEMA 4/4X/13* Cast Zinc* Pressure Connection: Internal: 0.5 Inch NPT* Mounting: Panel* 600V* 10A* 1 Normally Open - 1 Normally Closed (SPDT)* 1-Pole* Differential Type: Adjustable* 6.0 to 30 PSIG

Specifications

SKUCS775839
MPN9012GAW5
UPC/EAN785901024743
