Eaton DH364URK
SKU: CS749119MPN: DH364URKAlternate Part #s: DH364URKEAT-DH364URKUPC/EAN: 782113206813

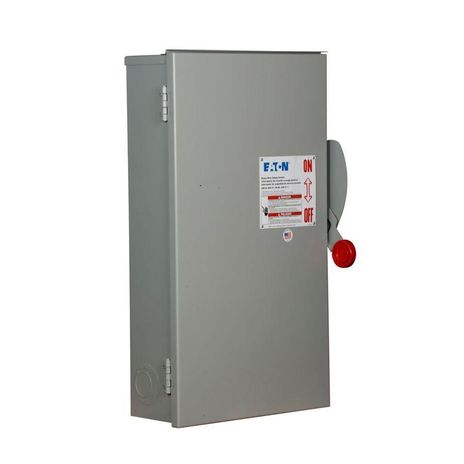

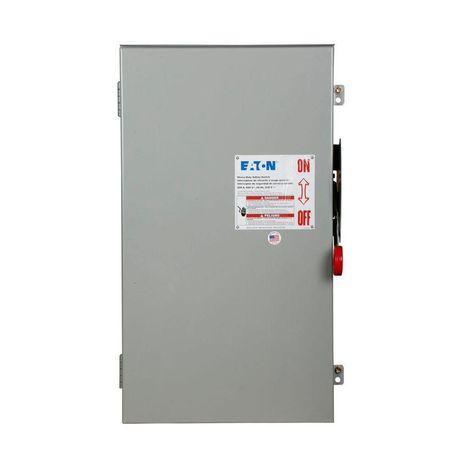

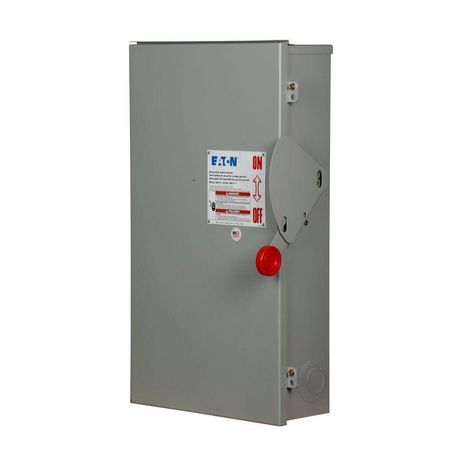

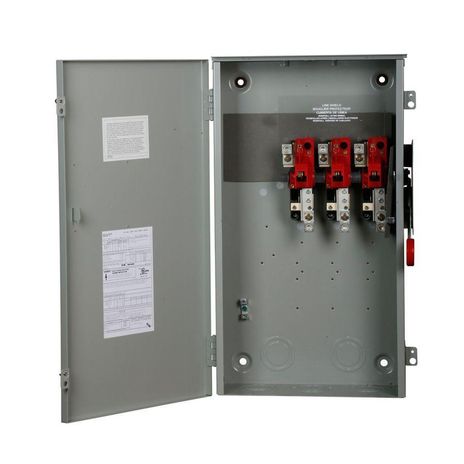

Eaton heavy duty non-fusible safety switch
$788.99
UnitAvailable on backorder
Product Details
Eaton Heavy duty single-throw non-fused safety switch, Single-throw, 200A, NEMA 3R, Painted galvanized steel, Non-Fusible, Three-pole, Three-wire, 15 at 240 Vac TD 1 Ph, 50 at 480 Vac TD 1 Ph, 50 at 600 Vac TD 1 Ph, 60 at 240 Vac TD 3 Ph
Attributes
| Amperage Rating | 200A |
| Enclosure | NEMA 3R |
| Enclosure Material | Painted galvanized steel |
| Fuse Configuration | Non-fusible |
| Hp Rating Max | 15 at 240 Vac TD 1 Ph, 50 at 480 Vac TD 1 Ph, 50 at 600 Vac TD 1 Ph, 60 at 240 Vac TD 3 Ph, 125 at 480 Vac TD 3 Ph, 150 at 600 Vac TD 3 Ph, 40 at 250 Vdc |
| Nema Rating | NEMA 3R |
| Neutral | Not included |
| Number Of Poles | Three-pole |
| Number Of Wires | 3 |
| Product Category | Heavy Duty, Non-Fusible |
| Type | Single-throw |
| Utility Approvals | NM : Public Service Company of New Mexico (PNM) |
| Voltage Rating | 600 V |
| Voltage Rating Uom | INH |
| Window | No Window |
Specifications
| SKU | CS749119 |
|---|---|
| MPN | DH364URK |
| Alternate Part #s | DH364URK, EAT-DH364URK |
| UPC/EAN | 782113206813 |
