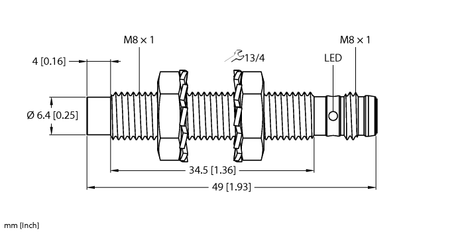

Turck NI3-EG08-AP6X-V1131
SKU: CS731804MPN: NI3-EG08-AP6X-V1131Alternate Part #: 4602750UPC/EAN: 4047101153255
4602750 - FERRITE, BARREL, DC, CON. M8
$147.22
Unit3 in stock
Product Details
Inductive Sensor
- M8 × 1 threaded barrel
- Stainless steel, 1.4305 (AISI 303)
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- M8 x 1 male connector
Attributes
| Ambient Temperature | -25…+70 °C |
| Construction Size | M8 x 1 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M8 × 1 |
| Housing Material | Stainless steel, 1.4305 (AISI 303) |
| Mounting | Non-flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP67 |
| Rated Switching Distance | 3 mm |
| Switching Frequency | 3.0 kHz |
Specifications
| SKU | CS731804 |
|---|---|
| MPN | NI3-EG08-AP6X-V1131 |
| Alternate Part # | 4602750 |
| UPC/EAN | 4047101153255 |
You may also like
Turck NI3-EG08-RP6X-V1131
$147.22Unit
Turck NI3-EG08K-AP6X-V1131
$147.22UnitTurck NI3-EG08-AN6X-V1131
$147.22Unit
Turck BI1.5-EG08-AP6X-V1131
$162.95UnitTurck BI2-EG08-AP6X-V1131
$151.37Unit

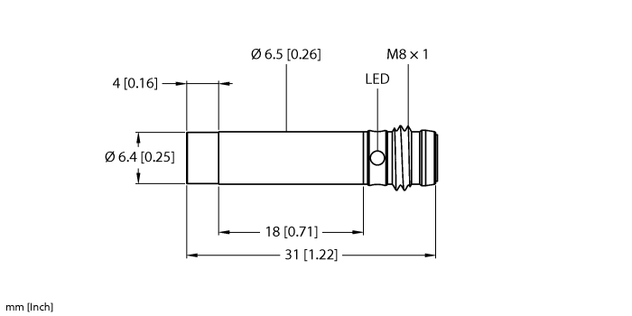

Turck NI3-EH6.5K-AP6X-V1131
$147.22Unit

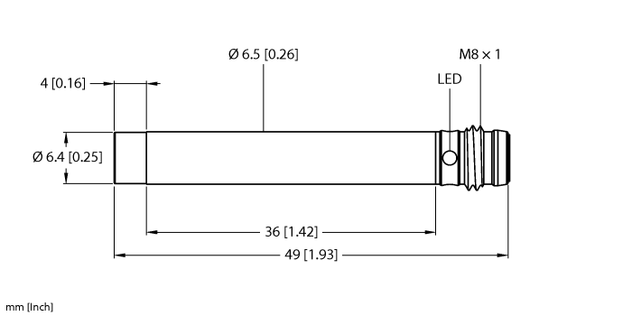

Turck NI3-EH6.5-AP6X-V1131
