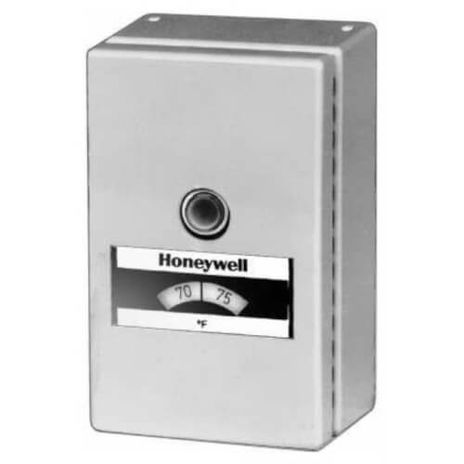

Honeywell T7515D1018

SENSOR FOR U/W MICROCEL PRODUCT INCLUDES SET POINT KNOB (DEG C) AND MOMENTARY PUSH BUTTON \<(>\&\<)> LED SWITCH FOR OVERRIDE APPLICATIONS. HAS PHONE J…

For use with T7300/Q7300 Thermostat system to provide space temperature sensing, and switch initiation and indication of overrides from remote location.

Product Features:

• Factory-calibrated negative temperature coefficient (NTC) thermistor sensing element.
• Mount on wall or 2 x 4 in. vertical outlet box.
• Locking cover.
• Override button.
• Warmer/cooler buttons on some models.
• 710 ohm models are for use with certain multiple sensor configurations.
• See T7300 product literature for details.

Product Specifications:

• Description: 710 ohm Remote Sensor and Override Module
• Applications: Provides space temperature sensing, switch initiation, and indication of overrides from a remote location
• Sensor Type: 710 ohms @ 75 F
• Color: Taupe
• Mounting: Mounts on wall or 2 x 4 inch vertical outlet box
• Operating Humidity Range: 5 to 90% RH, non-condensing
• Operating Temperature Range: 40 F to 110 F
• Shipping Temperature: -30 F to +150 F
• Dimensions: 4 ⅝ in. high x 3 ⅝ in. wide x 1 ⅝ in. deep
• Comments: Series 2000 styling, with override button, for averaging only. With warmer/cooler buttons
• Used With: T7300/Q7300
