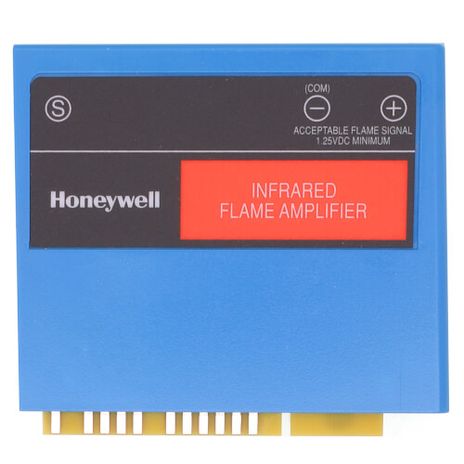

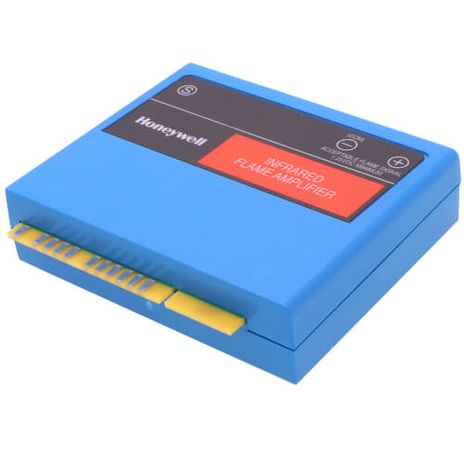

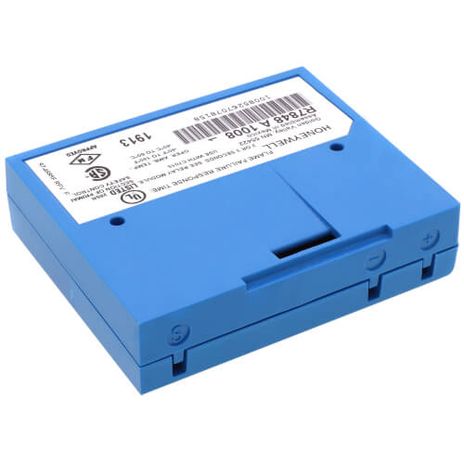

Honeywell R7848A1008

Flame Amplifier, Infrared used w/ 7800 Series Relay Modules (FFRT 2.0 sec or 3.0 sec)

Overview:

Solid state plug-in amplifiers that respond to flame detector inputs to indicate the presence of flame when used with 7800 SERIES relay modules.

Features:

• Flame failure response time of 0.8 or 3.0 seconds.
• Flame signal strength ranges from 0.0 to 5.0 Vdc.
• Plug into 7800 relay module through printed circuit board edge connector keyed for proper orientation.
• Flame signal test jacks to measure amplifier flame signal voltage.
• Color-coded labels identify flame detection type. Dynamic Self-Check Amplifier test the detectors and all electronic components in the flame detection system 7800 SERIES relay module locks out on safety shutdown with flame detection system failure.
• Compatible with existing Honeywell flame detectors (order separately).
• Type: Infrared
• Flame Failure Response Time (sec): 2.0 sec or 3.0 sec
• Self Checking: Dynamic Self-Check
• Use With Primary Safety Control: 7800 SERIES Relay Modules
• Use With Flame Sensor: Gas, oil, coal: Ultraviolet Flame Sensor C7012E, F
