Siemens 259-02014
SKU: CS701852MPN: 259-02014UPC/EAN: 4034106361471

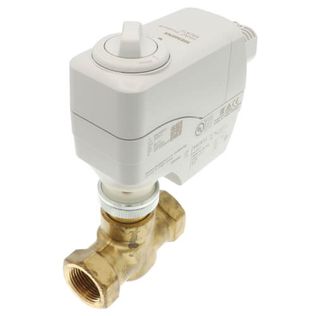

Valve assy NC 1” 10.0Cv FxF Brass Trim Elect Act NSR float
$229.57
UnitAvailable on backorder
Product Details
This Powermite 599 MT Series Normally Closed Valve Assembly features an electronic actuator with 24 volts AC operating voltage, floating and Fail In-Place. The assembly is ANSI Leakage Class IV, has a brass trim and a female to female connection. This assembly has a flow rate of 10.0 Cv, and a line size of 1”.
Attributes
| Actuator Type | Electronic |
| Close Off Pressure | 40 psi |
| Control Signal | Floating control |
| End Connection | FxF |
| Fail Safe | No |
| Flow Characteristic | Modified Equal-percentage |
| Flow Coefficient Cv | 10.0000 |
| Max Differential Pressure Liquid | 25 psi |
| Max Differential Pressure Steam | 5 psi |
| Max Inlet Pressure Absolute Liquid | 400 psi |
| Max Inlet Pressure Absolute Steam | 5 psi |
| Medium | Water;Water with anti-freeze |
| Medium Temperature | 35…250 ºF |
| Medium Temperature F Max | 250 ºF |
| Medium Temperature F Min | 35 ºF |
| Operating Voltage | 24 VAC |
| Port Configuration | 2-Way Normally closed |
| Spring Return Function | Non-spring return functionality |
| Supply Voltage | 24 VAC |
| Trim Material | Brass |
| Valve Size | 1 in |
| Valve Type | Two-way |
Specifications
| SKU | CS701852 |
|---|---|
| MPN | 259-02014 |
| UPC/EAN | 4034106361471 |
