Eaton E57LAL12A2

Name: Eaton E57LAL12A2
Brand: Eaton
SKU: CS699130
Price: 253.00 USD
Availability: OutOfStock

SKU: CS699130MPN: E57LAL12A2UPC/EAN: 782113742946

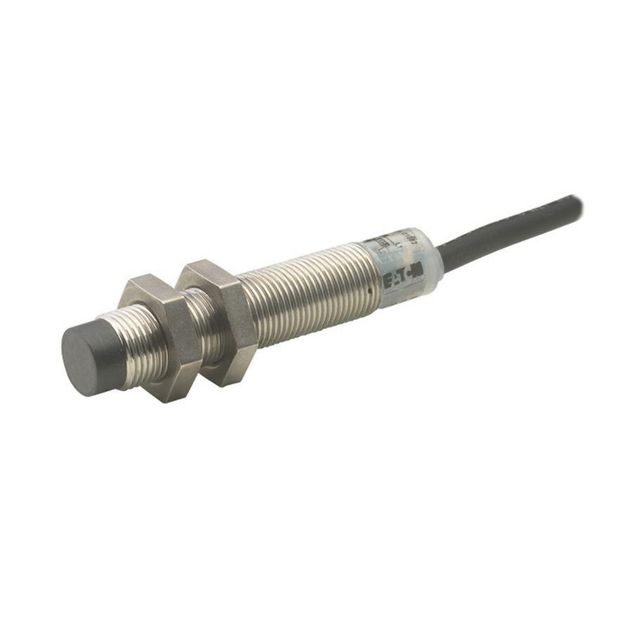

Eaton E57 inductive proximity sensor

Eaton E57LAL12A2, E57LAL12A2E, E57LAL12A2E3, E57LAL12A2E4, E57LAL12A2E5, E57LAL12A2EA, E57LAL12A2EP, E57LAL12A2S3, E57LAL12A2S4, E57LAL12A2S5, E57LAL12A2SA, E57LAL12A2SP, E57LAL12T110, E57LAL12T110E3, E57LAL12T110E4

Product Details

Eaton Premium+ Inductive Proximity Sensor, E57, 2 mm range, Straight, 12 mm, Shielded, 360° viewable LED, 6.6 ft, 250 mA at 250V, \<3% sensing range, PVC, 2-wire AC, NO, 20-250V

Attributes

Accuracy	< 3% sensing range
Actuator Function	Shielded
Cable Type	Polyvinyl Chloride (PVC)
Contact Configuration	2-wire AC, NO
Contact Rating	250 mA at 250V
Enclosure Material	303 stainless steel
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Input Voltage	20-250 V
Led Indicator	360 ° viewable LED
Maximum Ac Current	250 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Series	E57
Type	Premium+ Inductive Proximity Sensor
