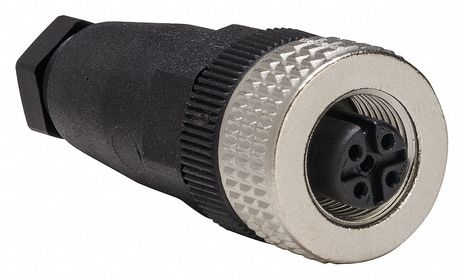

Square D XZ-CC12FDM50B

Internal Thread Connector 5 Female

Internal Thread Connector Mounting Style Female Thread Number of Poles 5 Connection Type Cable Assembly Construction One-Piece Thread Size M12 Voltage Rating 30V AC 36V DC Nominal Voltage 30V AC 36V DC Nominal Current 3 A Locking Style Screw Connection Flange Size 0.79 in Housing Material Plastic Connector Body Type Socket Cable Outside Diameter 20.1 mm Connector Orientation Straight Maximum Operating Temperature 185 Degrees F Minimum Operating Temperature -40 Degrees F
