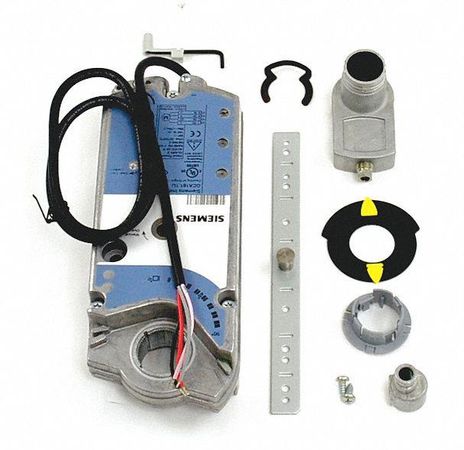

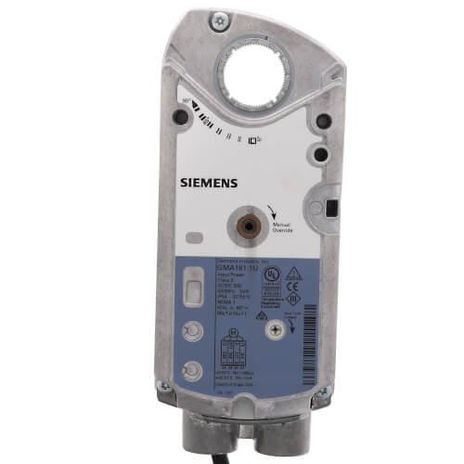

Siemens GMA161.1U
SKU: CS66497MPN: GMA161.1UUPC/EAN: 804766000324
OpenAir Damper Actuator, SR, 62 lb-in
$268.76
Unit10+ Units Available at Factory - Ships Same/Next Business Day
Product Details
OpenAir GMA Series Electric Damper Actuator, spring return, 62 lb-in
Attributes
| Actuation Style | Rotary |
| Actuator Type | Spring return |
| Ambient Humidity Operation | 95 % r.h. |
| Ambient Temperature Operation | -32…55 °C; -25…130 ºF |
| Auxiliary Switch | No |
| Connection Cable | 18 AWG |
| Control Or Fire Smoke Type | Control Damper |
| Control Signal | 0…10 Vdc |
| Fail Safe | Yes |
| Frequency | 50/60 Hz |
| Material Housing | NEMA 1, die-cast aluminum alloy enclosure, IP54 according to EN 60 529 |
| Operating Voltage | 19.2…28.8 V24 V#AC/DC |
| Plenum Or Standard Rating | Standard |
| Position Feedback | Yes |
| Positioning Time | Open:90 s;Close:15 s |
| Power Consumption | Running: 5 VA / 3.5 W, Holding: 4 VA / 3 W |
| Supply Voltage | 24 VAC/DC |
| Torque | 62 lb-in |
Specifications
| SKU | CS66497 |
|---|---|
| MPN | GMA161.1U |
| UPC/EAN | 804766000324 |
