Siemens 599-01115
SKU: CS658450MPN: 599-01115UPC/EAN: 804766016493

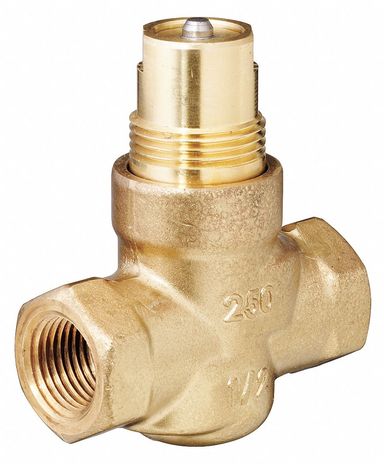

MZ Series ½” 2-Way Valve 0.4Cv, NO, Mod Eq Percent, Brass Trim, F×F, ANSI 250
$57.56
Unit11 in stock
Product Details
Powermite MZ Series, ½” 2-Way, 0.4 Cv, NO, Modified Equal Percentage, F×F, Brass Body, Brass Trim, ANSI Class 250, Designed to work with pneumatic or electronic actuators, Direct-coupled universal bonnet, 10 to 15 psi spring range, No tools required fo
Attributes
| End Connection | FxF |
| Flow Characteristic | Modified Equal-percentage |
| Flow Coefficient Cv | 0.62999999523163 |
| Medium | Water;Water with anti-freeze |
| Medium Temperature | 35…250 ºF |
| Medium Temperature F Max | 250 ºF |
| Medium Temperature F Min | 35 ºF |
| Mounting Position | vertical, horizontal, upright |
| Normally Open Normally Closed | Normally Open |
| Permissible Operating Pressure | 2758 kPa |
| Port Configuration | 2-Way Normally open |
| Trim Material | Brass |
| Valve Body Style | Stroke-Globe |
| Valve Size | 0.5 in |
| Valve Type | Two-way |
Specifications
| SKU | CS658450 |
|---|---|
| MPN | 599-01115 |
| UPC/EAN | 804766016493 |
