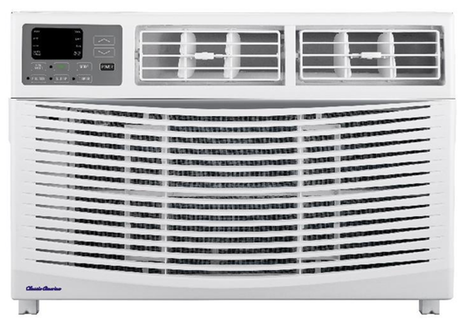

Classic America TWC-12CRD1/LOU-CA

12,000 BTU Window Air Conditioner for double hung windows

The unit has 4 modes of standard operation: Auto, Cool, Fan and Dry. There are also plenty of preset features programmed into it. The Automatic Switch Over (AUTO) mode allows the unit to pick the mode based on room temperature. The Timer function powers off the unit after a period of time, saving you money, or powers on the unit after a period of time at your desired temperature. Sleep mode mirrors the body’s naturally changing temperature levels while we sleep, allowing an uninterrupted night of sleep with energy savings! Worried what happens to your pet in case of a temporary power outage? the Auto Restart function restarts the unit to continue running the same way after power is returned to the unit. Maintenance concerns? It comes with a washable filter and a Filter Clean alert after 500 hours of operation.

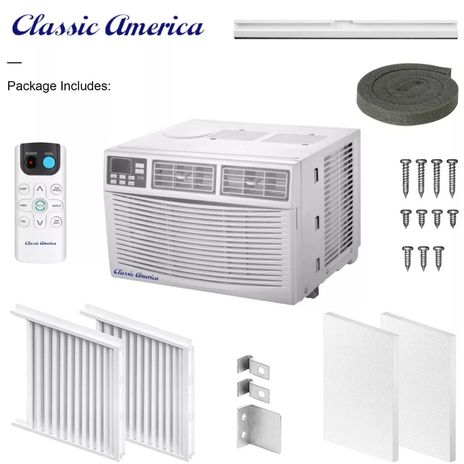

SYSTEM INCLUDES

• Air Conditioner
• Adjustable side panels to cover the remaining part of the window opening
• Top rail (8,000 only)
• Mounting hardware ( frame lock, sash lock, sash seal foam tape and screws)
• Wireless remote with full functionality.
• User manual and separate Wi Fi manual with instructions on how to connect to Wi-Fi, if you wish.

• FEATURES

• Control from your smartphone over Wi-Fi if you wish.
• Wireless Remote control with full functionality
• Digital display and control panel
• 3 Fan Speeds- High, Medium and Low
• Auto-Restart (in case of power failure, all settings such as desired temperature, mode and fan speed will be retained, and applied when power is restored)
• Water self-evaporation ( most of the water in the recovery tray is evaporated)
• Sleep Mode (turns off all display lights except SLEEP and gradually increases desired temperature while you sleep in order to save energy)
• 24-hour Timer (set time and temperature to turn on or time to turn off)
• ECO mode (Energy Saving Mode)
• Auto mode:  In AUTO mode the unit automatically chooses the fan speed and the mode of operation (COOL, DRY or FAN). In this mode the fan speed and the temperature are set automatically according to the room temperature
• Filter Check reminder after 500 hours of operation
• UL, DOE Certified

• This unit  is  designed to be installed in a standard double-hung window with a window width between 23” and 36”. The Lower Sash (the lower part of the window that moves up and down) must allow for 16” of vertical clearance when open. 120V three prong AC plug must be within 4.9 ft of unit (length of the power cord). Unit will draw 11A maximum while operating
