Dwyer VFC-143
SKU: CS634938MPN: VFC-143Alternate Part #: 116161-00
VFC-143 2-20 GPM WATER
$191.18
Unit2 in stock
Product Details

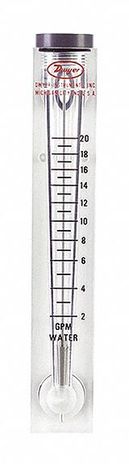

Flowmeter, range 2-20 GPM water.
Attributes
| Accuracy | 2% of FS. |
| Agency Approval | Meets the technical requirements of EU Directive 2011/65/EU (RoHS II). |
| Commodity Code | 5100 |
| Mounting Orientation | Mount in vertical position. |
| Process Connection | VFC: 1” female NPT back connections. End connections optional. VFCII: 1” male NPT back connections. End connections optional. |
| Service | Compatible gases and liquids. |
| Temperature Pressure Limits | 100 psig (6.9 bar) @ 120°F (48°C); |
| Wetted Material | Body: Acrylic plastic; O-ring: Buna-N (fluoroelastomer available); Metal parts: SS; Float: SS; Fittings: VFC: PVC; VFCII: Acetal thermoplastic. |
Specifications
| SKU | CS634938 |
|---|---|
| MPN | VFC-143 |
| Alternate Part # | 116161-00 |
