ACI A/10K-E1-S-4X

Name: ACI A/10K-E1-S-4X
Brand: ACI
SKU: CS6290834
Availability: OutOfStock

SKU: CS6290834MPN: A/10K-E1-S-4XAlternate Part #: 149276

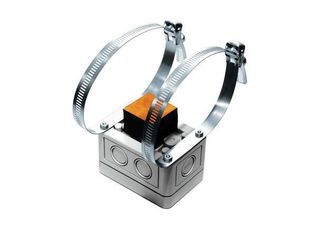

10,000 Ohm (E1) Thermistor, Strap On, NEMA 4X Enclosure

ACI A/1.8K-S-4X, A/1.8K-S10-4X, A/100-2W-S-4X, A/100-2W-S10-4X, A/100-3W-S-4X, A/100KS-S-4X, A/10K-E1-S-4X, A/10KS-S-4X, A/1K-2W-S-4X, A/1K-2W-S10-4X, A/1K-3W-S-4X, A/1K-NI-S-4X, A/20K-S-4X, A/20K-S10-4X, A/3K-S-4X

Product Details

10,000 Ohm (E1) Thermistor, Strap On, NEMA 4X Enclosure

Product Configuration

Length	None
Sensor	10K-E1 (10,000 Ω)

Product Family Specifications

Sensor Type	Thermistor
Number Wires	Two (Non-Polarity Sensitive)
Sensor Curve	Non-Linear, NTC (Negative Temperature Coefficient)
Product Weight	A/XX-S-GD: 0.80 lbs. (0.37kg) \| A/XX-S-PB: 0.40 lbs. (0.18kg) \| A/XX-S-4X: 0.55 lbs. (0.25kg)
Agency Approvals	CE, RoHS2, WEEE
Conductor Material	Silver Plated Copper
Pipe Sizes Accepted	A/X-S-XX: 1 ¼” (32mm) to 4” (100mm); A/X-S10-XX: 2” (50mm) to 10” (250mm)
Number Sensing Points	One
Operating Humidity Range	10 to 95% RH, non-condensing
Storage Temperature Range	-40 to 80ºC (-40 to 176ºF)
Power Dissipation Constant	3 mW/ºC except A/1.8K Series: 1 mW/ºC \| A/10K-E1 Series: 2 mW/ºC
Accuracy 0-70ºC (32-158ºF)	+/-0.2ºC (+/-0.36ºF) except A/10K-E1 Series: +/-0.3ºC (+/-0.54ºF); A/1.8K Series: +/- 0.5ºC @ 25ºC (77ºF) and (+/-1.0ºC) (+/-1.8ºF)
Lead Length \| Conductor Size	A/XX-S-XX: 14” (35.6cm) \| A/XX-S10-XX: 22 AWG (0.65mm)
Response Time (63% Step Change)	30 Seconds nominal
Lead Wire Insulation \| Wire Rating	Etched Teflon (PTFE) Colored Leads \| MIL-W-16878/4 (Type E)
Foam Pad Material \| Flammability Rating	Neoprene/EPDM/SBR Polymer \| UL94-HF1; MIL-R-6130C; FMVSS-302
Nominal Thermistor Resistive Output @ 77°F (25°C) (Lead Wire Colors)	A/1.8K: 1.8KΩ nominal \| (Red/Yellow) A/3K: 3KΩ nominal \| (White/Brown) A/AN (Type III): 10KΩ nominal \| (White/White) A/AN-BC: 5.238KΩ nominal \| (White/Yellow) A/CP (Type II): 10KΩ nominal \| (White/Green) A/CSI: 10KΩ nominal \| (Green/Yellow) A/10KS: 10KΩ nominal \| (White/Blue) A/10K-E1: 10KΩ nominal \| (Gray/Orange) A/20K: 20KΩ nominal \| (Brown/Blue) A/50K: 50KΩ nominal \| (Brown/Yellow) A/100KS: 100KΩ nominal \| (Black/Yellow)
Enclosure Specifications (Material, Flammability, Temperature, NEMA/IP Rating)	A/XX-S-GD: Galvanized Steel, -40 to 93ºC (-40 to 200ºF), NEMA 1 (IP 10) A/XX-S-PB: ABS Plastic, -30 to 85ºC (-22 to 185ºF), UL94-HB, Plenum Rated A/XX-S-4X: Polystyrene Plastic, -40 to 70ºC (-40 to 158ºF), UL94-V2, NEMA 4X (IP 66)
