ACI A/DLP-300-P-B-D-B-3-A-0P-S

SKU: CS6290053MPN: A/DLP-300-P-B-D-B-3-A-0P-SAlternate Part #: 147475

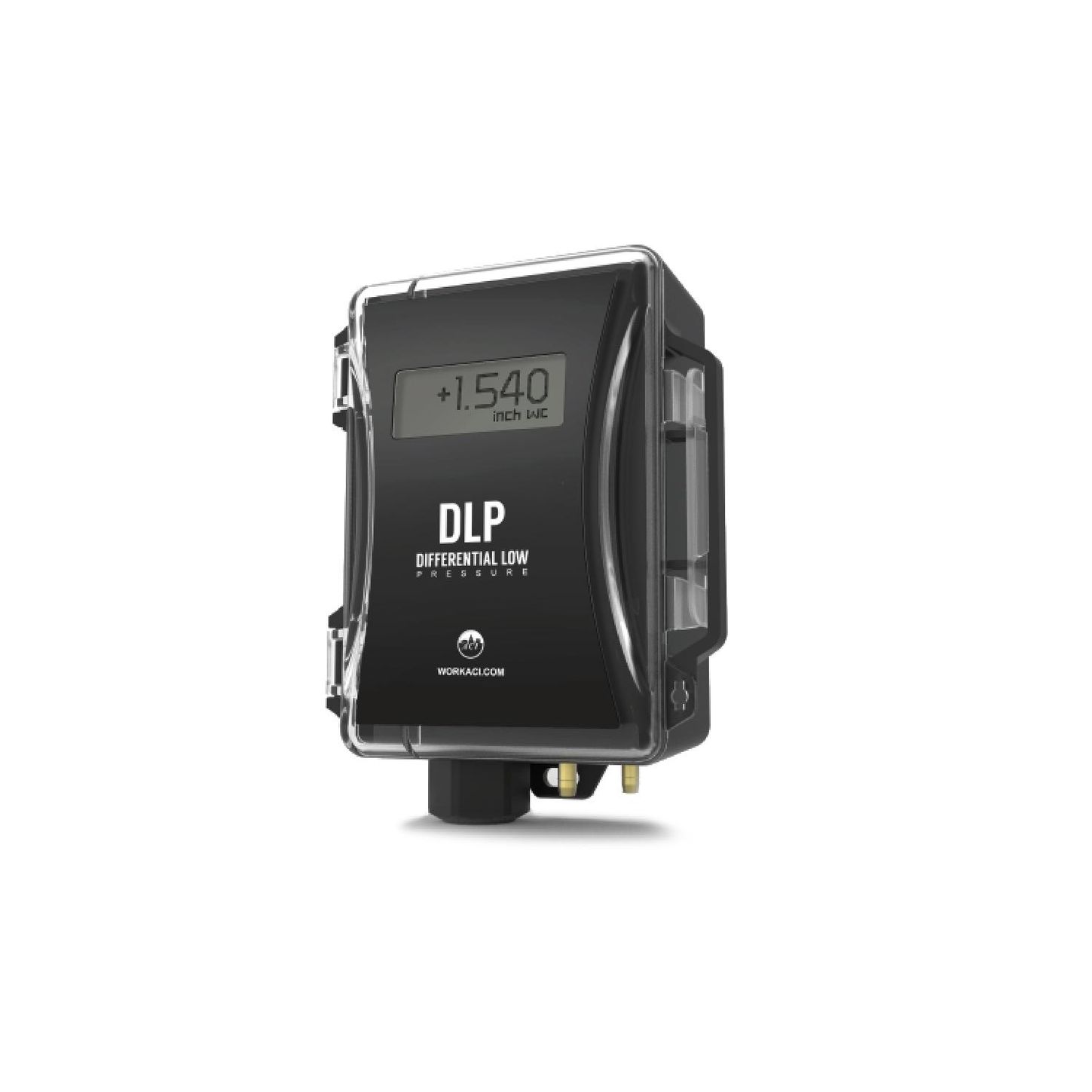

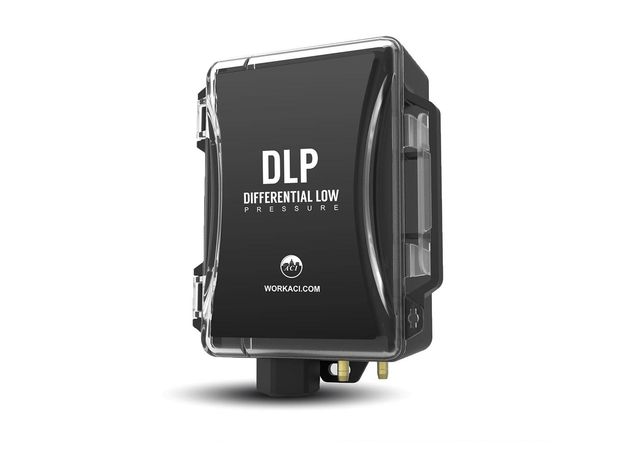

Differential Low Pressure, 300 Pascals, Bidirectional, LCD, 0.25% Accuracy, w/ Pitot Tube and Din Rail, 4-20mA Output, No NIST, Standard

ACI A/DLP-001-W-B-D-A-0-A-0P-S, A/DLP-001-W-B-D-A-0-B-0P-S, A/DLP-001-W-B-D-B-0-A-0P-S, A/DLP-001-W-B-D-B-0-A-3P-S, A/DLP-001-W-B-D-B-0-C-0P-S, A/DLP-001-W-B-D-B-0-C-5P-S, A/DLP-001-W-B-D-B-1-C-0P-S, A/DLP-001-W-B-D-B-2-C-0P-S, A/DLP-001-W-B-D-B-3-A-5P-S, A/DLP-001-W-B-D-B-3-B-0P-S, A/DLP-001-W-U-D-A-0, A/DLP-001-W-U-D-A-0-A-0P-S, A/DLP-001-W-U-D-A-0-A-3P-S, A/DLP-001-W-U-D-A-0-C-3P-S, A/DLP-001-W-U-D-A-3
Contact us for pricing and availability

Product Details

Differential Low Pressure, 300 Pascals, Bidirectional, LCD, 0.25% Accuracy, w/ Pitot Tube and Din Rail, 4-20mA Output, No NIST, Standard

Product Configuration

Span -300 to 300 Pascals
Pressure Type Differential Transmitters – Air

Product Family Specifications

Accuracy Specify: +/-0.25% FSO (except for 0.1”(25Pa) range) | +/-0.5% FSO Note 1: Accuracy includes Linearity, Hysteresis and Repeatability @ 71°F (21.5°C)
Media Types Intended for use with non-corrosive, non-ionic gases, such as air and other dry gases
Zero Function Pushbutton Zero Function
Burst Pressure ≤ 1” wc (250 Pa): 415 inWC (103.3 kPa) for 1 inWC (249.8 Pa) range ≥ 1” wc (250 Pa) ≤ 10” wc (2500 Pa): 550 inWC (136.9 kPa) for 10 inWC (2490.8 Pa) range ≥ 10” *2500 Pa) ≤ 40” wc (10K Pa): 1004.7 inWC (250 kPa) for 40 inWC (9963.6 Pa) range
Output Signals 4-20 mA: 2-wire Loop Powered (output limited to 20.5 mA maximum) 4-20 mA: 3-Wire, VAC Powered (output limited to 20.5 mA maximum) 0-5 VDC or 0-10 VDC: 3-Wire, VAC or VDC Powered (output limited to 5.25 \& 10.25 VDC)
Proof Pressure ≤ 1” wc (250 Pa): 270 inWC (67.2 kPa) for 1 inWC (249.8 Pa) range ≥ 1” wc (250 Pa) ≤ 10” wc (2500 Pa): 350 inWC (87.12 kPa) for 10 inWC (2490.8 Pa) range ≥ 10” (2500 Pa) ≤ 40” wc (10K Pa): 562 inWC (140 kPa) for 40 inWC (9963.6 Pa) range
Supply Current 4-20 mA Output: 24 mA (0.83 VA) 0-5 VDC / 0-10 VDC Outputs: 6 mA maximum (0.18 VA)
Supply Voltage 4-20 mA Output: 16-36 VDC (250 Ohm Load max.) / 22-36 VDC (500 Ohm Load max) / 24 VAC(+/-10%) 50/60 Hz 0-5 VDC / 0-10 VDC Output: 15-36 VDC into > 5K Ohm Load / 24 VAC (+/- 10%), 50/60 Hz
Thermal Effects ±0.067% FSO / °F (0.12% FSO / °C) Note2: Shift is relative to 71°F (21.5°C)
Agency Approvals CE, RoHS2, WEEE, Reach
Conduit Knockouts Watertight Cordgrip Installed (½” NPT Conduit fittings accepted when Cordgrip removed)
NIST Certification 3 Point NIST Test Points: 10%, 50%, \& 90% FSO 5 Point NIST Test Points: 10%, 30%, 50%, 70%, \& 90% FSO
Output Update Rate 0.5 second intervals
Wiring Connections Finger Pushbutton (Spring) Terminal Blocks; accepts 16-24 AWG wires
Operating Humidity Range 10 to 95% RH, non-condensing
Pressure Fitting Material Nickel Plated Brass
Storage Temperature Range -22 to 185°F (-30 to 85°C)
Response Time (0-100% FSO) 4 seconds
Operating Temperature Range -4 to 185°F (-20 to 85°C)
Compensated Temperature Range 32 to 122°F (0 to 50°C)
Tubing Connection | Tubing Size ¼” O.D. x 0.170” I.D. Poly Tubing
Enclosure Material | Flammability Rating Flame Retardant Polycarbonate; UL94-5VA
Product Weight (No Pitot Tube / Din Rail) Non-LCD Display Version: 0.53 lbs (0.240 kg) | LCD Display Version: 0.58 lbs (0.263 kg)
Product Weight (With Pitot Tube \& Din Rail) Non-LCD Display Version: 0.80 lbs (0.363 kg) | LCD Display Version: 0.85 lbs (0.385 kg)

Specifications

SKUCS6290053
MPNA/DLP-300-P-B-D-B-3-A-0P-S
Alternate Part #147475
