ACI A/0.1AN-R

Name: ACI A/0.1AN-R
Brand: ACI
SKU: CS6289678
Availability: OutOfStock

SKU: CS6289678MPN: A/0.1AN-RAlternate Part #: 146793

High Accuracy 10,000 Ohm Thermistor (Type III), Room (R)

ACI A/0.1AN-R, A/0.1CP-R, A/1.8K-R, A/1.8K-R-NIST, A/100-2W-R-RJ4, A/100-2W-R-RJ6, A/100-3W-R, A/100KS-R, A/10K-E1-R, A/10KS-R, A/1K-2W-R, A/1K-3W-R, A/1K-3W-R-NIST, A/1K-NI-R, A/20K-R

Product Details

High Accuracy 10,000 Ohm Thermistor (Type III), Room (R)

Product Configuration

Sensor	0.1AN (10KΩ III, High Accuracy)

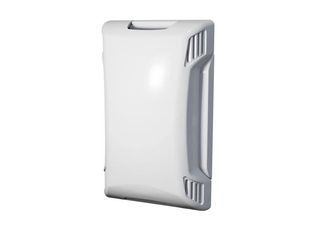

Enclosure	Room (R)

Product Family Specifications

Stability	A/0.1AN Series: +/- 0.12ºC (0.216ºF) from 1.5 to 50ºC (35 to 122ºF) A/0.1CP Series: +/- 0.06ºC (0.108ºF) from 1.5 to 50ºC (35 to 122ºF) The sensors will operate over an extended operating temperature range of -40 to 150ºC (-40 to 302ºF) without damaging the sensors but the accuracy and long-term stability will not meet the specifications above \| Contact ACI for more information
Sensor Type	Thermistor
Sensor Curve	Non-Linear, NTC (Negative Temperature Coefficient)
Product Weight	A/XXXX-R/RS/RO Series: 0.14 lbs. (63.5g) A/XXXX-RSO Series: 0.18 lbs. (81.6g) A/XXXX-R2/R2S/R2O Series: 0.16 lbs. (72.6g) A/XXXX-R2SO Series: 0.20 lbs. (90.7g)
Override Option	Short Thermistor (Default); Field (Jumper) Selectable “Dry Contact” Closure (Separate Input); Short Set Point available upon request
Agency Approvals	CE, UKCA, RoHS2, WEEE
NIST Certification	3 Point NIST Certificate (not available w/ Setpoint or Comm Jack options)
Set Point Tolerance	+/- 10% of Range
Number Sensing Points	One
Connections \| Wire Size	Screw Terminal Blocks (Non-Polarity Sensitive) \| 16 (1.31 mm) to 26 AWG (0.129 mm)
Operating Humidity Range	10 to 95% RH, non-condensing
Storage Temperature Range	1.5 to 50ºC (35 to 122ºF) For best accuracy and long-term stability the sensor should be used in applications where the operating temperatures remain within the specied temperature range of 0 to 70ºC (32 to 158ºF)
Enclosure Material \| Color	“-R2” Enclosure: ABS \| “-R2” Enclosure: White “-R” Enclosure: ABS \| “-R” Enclosure: Beige
Power Dissipation Constant	2 mW/ºC
Operating Temperature Range	1.5 to 50ºC (35 to 122ºF) The sensors will operate over an extended operating temperature range of -40 to 150ºC (-40 to 302ºF) without damaging the sensors but the accuracy and long-term stability will not meet the specifications above \| Contact ACI for more information
Accuracy 0-70ºC (32-158ºF)	+/-0.1ºC (+/-0.18ºF) For best accuracy and long-term stability the sensor should be used in applications where the operating temperatures remain within the specified temperature range of 0 to 70ºC (32 to 158ºF)
Terminal Block Torque Rating	0.5 Nm (Minimum); 0.6 Nm (Maximum)
Enclosure Flammability Rating	UL94-HB
Response Time (63% Step Change)	10 Seconds nominal
