ACI MSR-50RK/W

Name: ACI MSR-50RK/W
Brand: ACI
SKU: CS6289390
Availability: OutOfStock

SKU: CS6289390MPN: MSR-50RK/WAlternate Part #: 144981

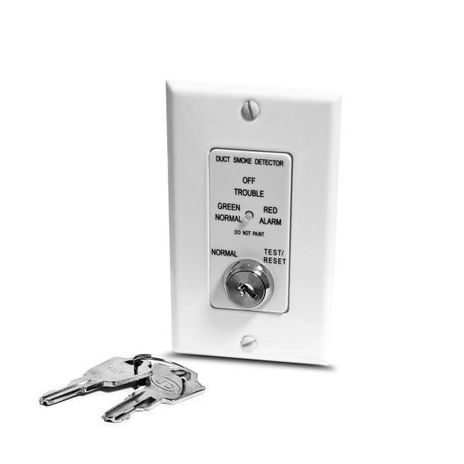

Remote with Key, Test/Reset, White Single Gang Plate

Product Details

Remote with Key, Test/Reset, White Single Gang Plate

Remote Accessory Features	Remote with Key, Test/Reset

Buzzer	Alarm Horn: 78 db @ 10ft
Wiring	LEDs/Horn: 6” / 24 AWG pigtails Switches: 6” / 22 AWG pigtails
Supply Current	Alarm LED: 15 mA @ 24 VDC Trouble LED: 15 mA @ 24 VD Pilot LED: 15 mA @ 24 VDC Alarm Horn: 20 mA @ 24 VDC
Agency Approvals	UL Listed for use with ACI Products and Controls duct smoke detectors including all RW-Series, SM-Series, HS-Series and SL-Series duct smoke detectors UL URRQ, URRQ7.S7425 CSFM 7300-1004:107 MEA 73-92-E VOL25
Product Dimensions	Single Gang Plate: (H) 4.50” (114.3 mm) x (W) 2.75” (69.85 mm) Double Gang Plate: (H) 4.50” (114.3 mm) x (W) 4.50” (114.3 mm)
