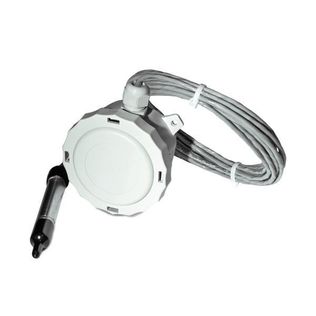

ACI A/RH2-RP2-10'-EH

SKU: CS6289325MPN: A/RH2-RP2-10'-EHAlternate Part #: 144793

Relative Humidity, RH Outputs: 0-5, 0-10 VDC \& 4-20mA (Default), Remote Probe, 10’ Plenum Cable, ± 2% Accuracy, Euro Enclosure

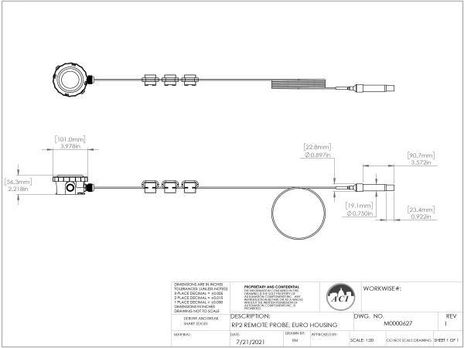

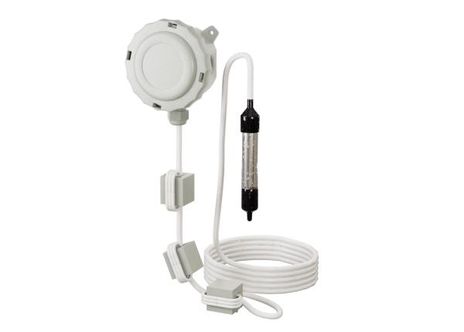

ACI A/RH2-RP2-10'-EH, A/RH3-RP2-3'-EH
ACI A/RH2-RP2-10'-EH, A/RH3-RP2-3'-EH
ACI A/RH2-RP2-10'-EH, A/RH3-RP2-3'-EH
ACI A/RH2-RP2-10'-EH, A/RH3-RP2-3'-EH
Contact us for pricing and availability

Product Details

Relative Humidity, RH Outputs: 0-5, 0-10 VDC \& 4-20mA (Default), Remote Probe, 10’ Plenum Cable, ± 2% Accuracy, Euro Enclosure

Product Configuration

NIST None
Wire 10’ Plenum Cable - CL2P
Humidity Type Relative Humidity
Accuracy (Humidity) +/-2%

Product Family Specifications

Lead Length 3.0‘ (0.914 m), 6.0’ (1.829 m), 10.0’ (3.048 m), 20.0’ (6.096 m)
Output Signals 2-wire: 4 - 20 mA (Factory Default) 3-wire: 0-5 or 0-10 VDC and 4 - 20 mA (Field Selectable)
Product Weight A/RHx-RP2-EH Series: 1.20 lbs. (0.545 kg)
RH Sensor Type Capacitive with Hydrophobic Filter
Supply Current Voltage Output: 8 mA maximum (0.32 VA) Current Output: 24 mA maximum (0.83 VA)
Supply Voltage 4-20 mA: 250 Ohm Load: 15 - 40 VDC / 18 - 28 VAC | 500 Ohm Load: 18 - 40 VDC / 18 - 28 VAC 0-5 VDC: 12 - 40 VDC / 18 - 28 VAC | 0-10 VDC: 18 - 40 VDC / 18 - 28 VAC Note: Reverse Polarity Protected
Agency Approvals CE, RoHS, WEEE
Operating RH Range 0 to 95% RH, non-condensing (Conformally Coated PCB’s)
RH NIST Test Points Default Test Points: 3 Points (20%, 50% \& 80%)
RH Measurement Range 0-100%
Output Load Resistance 4-20 mA: 700 Ohms maximum 0-5 VDC or 0-10 VDC: 4K Ohms minimum
RH Response Time (T63) 20 Seconds Typical
Connections | Wire Size Screw Terminal Blocks (Polarity Sensitive) | 16 (1.31 mm²) to 26 AWG (0.129 mm²)
Accuracy @ 77°F (25°C) +/- 2%, or +/- 3% from 10 to 95% RH
Minimum Cable Bend Radius 1.92” (48.77 mm) or 10x the Cable Diameter
Storage Temperature Range -13 to 149°F (-25 to 65°C)
Operating Temperature Range -13 to 140°F (-25 to 60°C)
Terminal Block Torque Rating 4.43 to 5.31 lb-in (0.5 to 0.6 Nm)
Enclosure Dimensions (L x W x H) “-EH” Enclosure (Diameter x Depth): 4.30” (19.05 mm) x 2.12” (53.85 mm)
Cable Operating Temperature Range 32 to 167°F (0 to 75°C)
RH Transmitter Stabilization Time 30 Minutes (Recommended time before doing accuracy verification)
Cable Ratings | Cable Jacket Material UL(CMP, CL3P, FPLP); CSA (CMP, FT6), Plenum Rated | Polyvinyl Chloride (PVC)
Sensing Tube Material | Filter Material 304 Series Stainless Steel
RH Stability | Repeatability | Sensitivity Less than 2% drift / 5 years | 0.5% RH | 0.1% RH
Sensing Tube Dimensions (Length x Diameter) 5.12” (130.10 mm) x 0.750” (19.05 mm)
Enclosure Specifications (Material, Flammability, Temperature, NEMA/IP Rating) “-EH” Enclosure: ABS Plastic; UL94-V0; -40 to 140°F (-40 to 60°C)

Specifications

SKUCS6289325
MPNA/RH2-RP2-10'-EH
Alternate Part #144793
