ACI A/1K-3W-LT-D-12"-BB

Name: ACI A/1K-3W-LT-D-12"-BB
Brand: ACI
SKU: CS6288818
Availability: OutOfStock

SKU: CS6288818MPN: A/1K-3W-LT-D-12"-BBAlternate Part #: 142785

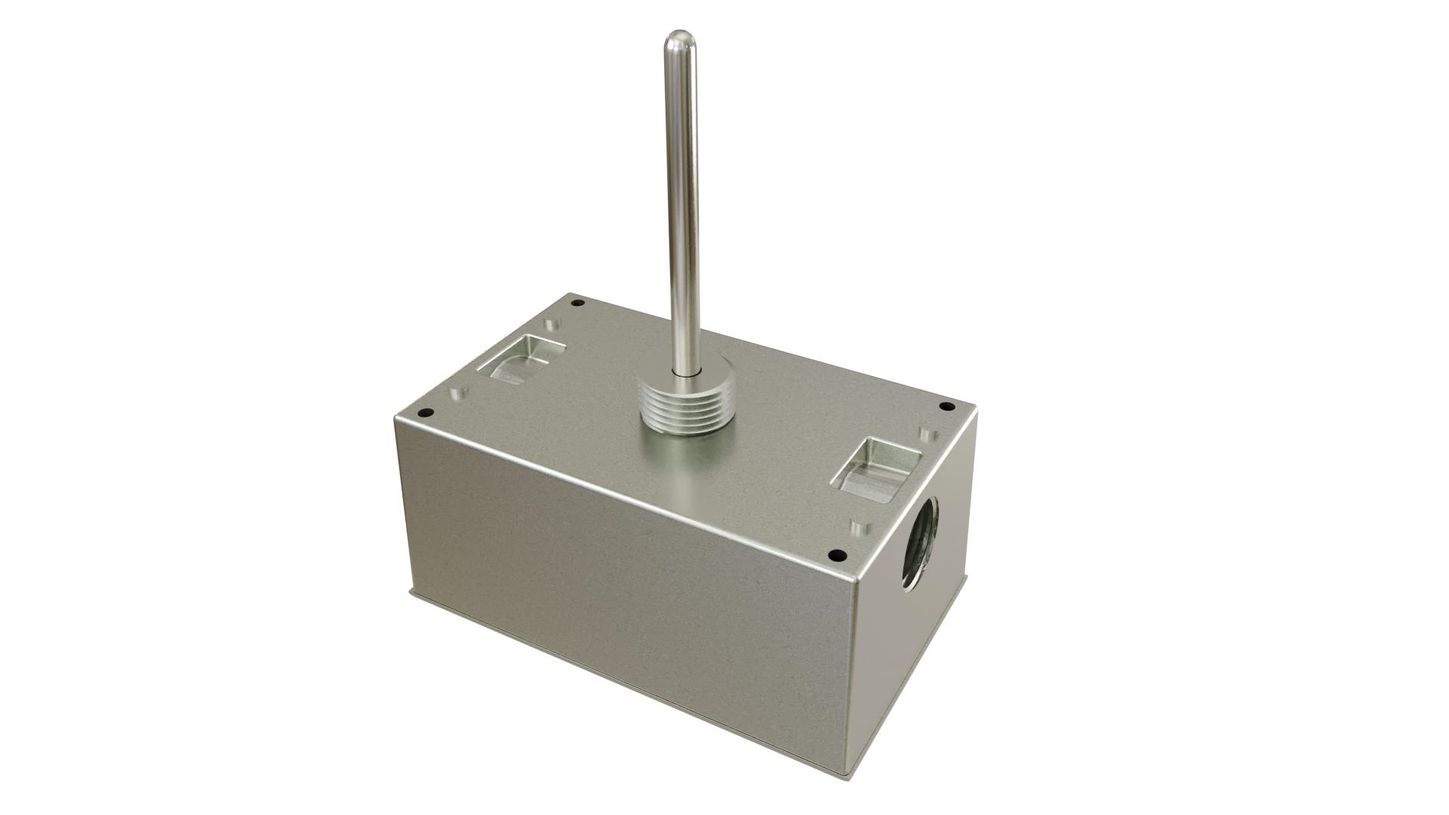

1,000 Ohm (Three Wires) RTD, Low Temperature Duct, 12” 316 SS, NEMA 3R Enclosure

ACI A/100-3W-HT-D-4"-BB, A/100-3W-HT-INW-2.5"-BB, A/1K-3W-HT-D-18 -BB, A/1K-3W-HT-D-4"-BB, A/1K-3W-HT-D-8"-BB, A/1K-3W-HT-INW-12"-BB, A/1K-3W-HT-INW-6"-BB, A/1K-3W-LT-D-12"-BB, A/TT100-HT-INW-2.5"-4-BB, A/TT100-HT-INW-4"-4-BB, A/TT1K-HT-INW-2.5"-4-BB, A/TT1K-HT-INW-4"-2-BB, A/TT1K-HT-INW-4"-4-BB, A/TT1K-HT-INW-6"-2-BB, A/TT1K-HT-INW-6"-2-GD

Product Details

1,000 Ohm (Three Wires) RTD, Low Temperature Duct, 12” 316 SS, NEMA 3R Enclosure

Product Configuration

Length	12”
Sensor	1K-3W-LT (1,000 Ω, Low Temp)
Temperature Series	Low Temperature Sensor

Product Family Specifications

Stability	\< 0.04 % at 1000 hours at 400ºC
Number Wires	A/100-3W-LT-I-XX” and A/1K-3W-LT-I-xx”: Three (White / Two Red) Polarity Sensitive)
Output Signals	Current: 4-20 mA (2-Wire Loop Powered) \| Voltage: 1-5 VDC or 2-10 VDC (3-Wires)
Probe Diameter	0.250” (6.35mm)
Probe Material	316 Stainless Steel
Agency Approvals	RoHS2, WEEE
Temperature Drift	Temp. Spans \< 100ºF (38ºC): +/- 0.04%/ºF \| Temp. Spans > 100ºF (38ºC): +/- 0.02%
Number Sensing Points	One
Connections \| Wire Size	Screw Terminal Blocks (Non-Polarity Sensitive) \| 16 AWG (1.31 mm2) to 26 AWG (0.129 mm2)
Maximum Load Resistance	(Terminal Voltage - 8.5 V) \| 0.020 A
Operating Humidity Range	10 to 95% RH, non-condensing
Storage Temperature Range	-40 to 85ºC (-40 to 185ºF)
Sensor Type \| Sensor Curve	Platinum RTD \| PTC (Positive Temperature Coefficient)
Operating Temperature Range	-40ºF (-40ºC) to 185ºF (85ºC)
Sensor Tolerance \| Accuracy	+/- 0.12% Class B \| Class B Tolerance Formula: +/- ºC \= (0.30ºC + (0.005 * \|t\|))
Calibrated Temperature Spans	Minimum Temp. Span: 50ºF (28ºC) \| Maximum Temp. Span: 700ºF (370ºC)
Compression Fitting Material	316 Stainless Steel
Lead Length \| Conductor Size	8’ (2.44 m) \| 22 AWG (0.25 mm)
Sensor Output @ 0ºC (32ºF)	A/100-3W-LT-I-xx”: 100 Ohms nominal \| A/1K-3W-LT-I-xx”: 1000 Ohms nominal
Terminal Block Torque Rating	0.5 Nm nominal
TT Warm Up Time \| Warm Up Drift	10 Minutes \| +/- 0.1%
Lead Wire Insulation \| Wire Rating	Etched Teflon (PTFE) \| Silver Plated Copper
Sensor Operating Temperature Range	-198 to 150ºC (-324 to 302ºF)
TT Calibrated Accuracy \| Linearity	Temp. Spans \< 500ºF (260ºC): +/- 0.2% \| Temp. Spans > 500ºF (260ºC): +/- 0.5%
Din Standard \| Temperature Coeffcient	DIN EN 60751 (IEC 751) \| 3850 ppm / ºC
Self-Heating \| Maximum Operating Current	100 Ohm RTD: 7 mW/ºC (Still Air) \| 5 mA \| 1K Ohm RTD: 4 mW/°C (Still Air) \| 3 mA
Transmitter Supply Voltage \| Supply Current	+8.5 to 32 VDC (Reverse Polarity Protected) \| 25 mA minimum 250 Ohm Load: +13.5 to 32 VDC \| 500 Ohm Load: +18.5 to 32 VDC
Enclosure Specifications (Material, Flammability, Temperature, NEMA/IP Rating)	“-GD” Enclosure: -40 to 199ºC (-40 to 390ºF); Galvanized Steel; NEMA 1 (IP10) “-BB” Enclosure: Aluminum, -40 to 121ºC (-40 to 250ºF), Plenum Rated, NEMA 3R
