ACI A/1K-2W-PM-20'CL2P
SKU: CS6288737MPN: A/1K-2W-PM-20'CL2PAlternate Part #: 142594
1,000 Ohm (Two Wires) RTD, Pipe Mount, Brass, 20’ Plenum Cable
Contact us for pricing and availability
Product Details
1,000 Ohm (Two Wires) RTD, Pipe Mount, Brass, 20’ Plenum Cable
Product Configuration
| Wire | 20’ Plenum Cable - CL2P |
|---|---|
| Sensor | 1K-2W (1,000 Ω, 2 wires) |
Product Family Specifications
| Number Wires | A/100-2W-PM Series and A/1K-2W-PM Series: Two (Non-Polarity Sensitive) A/100-3W-PM Series and A/1K-3W-PM Series: Three (Polarity Sensitive) |
|---|---|
| Product Weight | 0.06 lbs. (27.22g) |
| Sensor Accuracy | +/- 0.06% Class A (Tolerance Formula: +/- ºC \= (0.15ºC + (0.002 * |t|)) where |t| is the absolute value of Temperature above or below 0ºC in ºC) -40ºC (-40ºF): +/- 0.23ºC (+/- 0.414ºF) | 0ºC (32ºF): +/- 0.15ºC (+/- 0.27ºF) 200ºC (392ºF): +/- 0.55ºC (+/- 0.99ºF) |
| Agency Approvals | CE, RoHS, WEEE |
| Conductor Material | Silver Plated Copper |

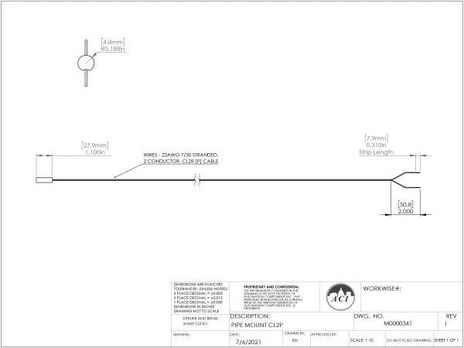

| Product Dimensions | 1.10” (27.9mm) x 0.375” (9.53mm) |
| Pipe Sizes Accepted | ½” (12.7mm) to 1” (25.4mm) |
| Number Sensing Points | One |
| Platinum RTD Stability | +/- 0.03% after 1000 Hours @ 300ºC (572ºF) |
| Operating Humidity Range | 10 to 95% RH condensing |
| Storage Temperature Range | -40 to 85ºC (-40 to 185ºF) |
| Sensor Type | Sensor Curve | Platinum RTD | PTC (Positive Temperature Coefficient) |
| Operating Temperature Range | -40 to 200ºC (-40 to 392ºF) |
| Lead Length | Conductor Size | 24” (61cm) | 22 AWG (0.65mm) |
| Sensor Output @ 0ºC (32ºF) | A/100-xW-PM Series: 100 Ohms nominal | A/1K-xW-PM Series: 1000 Ohms nominal |
| Lead Wire Insulation | Wire Rating | Etched Teon (PTFE) Colored Leads | MIL-W-16878/4 (Type E) |
| Pipe Mount Sensor Enclosure Material | Brass |
| Din Standard | Temperature Coeffcient | DIN EN 60751 (IEC 751) | 3850 ppm / ºC |
| Self-Heating | Maximum Operating Current | 100 Ohm RTD: 7 mW/ºC (Still Air) | 5 mA | 1K Ohm RTD: 4mW/ºC (Still Air) | 3 mA |
| Platinum RTD Response Time (63% Step Change) | 8 Seconds nominal |
Specifications
| SKU | CS6288737 |
|---|---|
| MPN | A/1K-2W-PM-20'CL2P |
| Alternate Part # | 142594 |
