All ProductsACI

ACI A/3K-PO-4"-20'CL2P-HS

SKU: CS6288581MPN: A/3K-PO-4"-20'CL2P-HSAlternate Part #: 142215

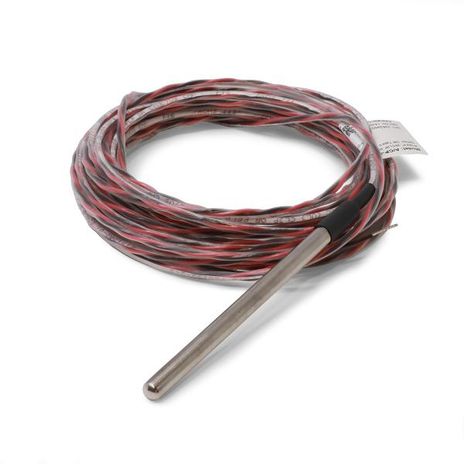

3,000 Ohm Thermistor, Probe Only, 4”, 20’ Plenum Cable, w/ Adhesive Heat Shrink

ACI A/3K-PO-4"-20'CL2P-HS
ACI A/3K-PO-4"-20'CL2P-HS
ACI A/3K-PO-4"-20'CL2P-HS
ACI A/3K-PO-4"-20'CL2P-HS
Contact us for pricing and availability

Product Details

3,000 Ohm Thermistor, Probe Only, 4”, 20’ Plenum Cable, w/ Adhesive Heat Shrink

Product Configuration

Sensor 3K (3,000 Ω)
Temperature Series Thermistor

Product Family Specifications

Number Wires Two (Non-Polarity Sensitive)

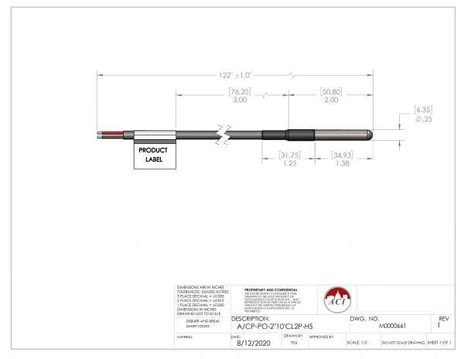

Probe Diameter 0.250” (6.35mm)
Probe Material 304 Stainless Steel
Product Weight A/xx-PO-4”-20’CL2P: 0.025 lbs. (113.4g)
Sensor Accuracy -40ºC (-40ºF): +/-1.52ºC (+/-2.73ºF) | 0ºC (32ºF): +/-0.4ºC (+/-0.72ºF) | 21.1ºC (70ºF): +/-0.17ºC (+/-0.34ºF) | 54.4ºC (130ºF): +/-0.56ºC (+/-1.00ºF) | 121ºC (250ºF): +/-1.25ºC (+/-2.25ºF)
Agency Approvals RoHS, WEEE
Conductor Material Tin Plated Copper
Operating RH Range 10 to 95% RH, condensing
Nickel RTD Stability +/- 0.05% after 1000 Hours @ 150ºC (302ºF)
Platinum RTD Stability +/- 0.03% after 1000 Hours @ 300ºC (572ºF)
Storage Temperature Range -40 to 85ºC (-40 to 185ºF)
Power Dissipation Constant 3 mW/ºC except A/1.8K: 1 mW/ºC
Sensor Type | Sensor Curve Thermistor | NTC (Negative Temperature Coefficient)
Operating Temperature Range -40 to 150ºC (-40 to 302ºF)
Accuracy 0-70ºC (32-158ºF) +/-0.2ºC (+/-0.36ºF) A/1.8K: +/-0.5ºC @ 25ºC (77ºF) \& (+/-1.0ºC) (+/-1.8ºF)
Lead Length | Conductor Size 20 Feet (6.10m) | 22 AWG (0.65mm)
Response Time (63% Step Change) 10 Seconds Nominal
Lead Wire Insulation | Wire Rating FEP/FEP (Teflon) Cable | CL2P/CMP Plenum Rated Cable (minimum)
Platinum RTD Output @ 32°F (0°C) A/100-xW-PO-4”: 100 Ohms nominal | A/1K-xW-PO-4”: 1000 Ohms nominal
Din Standard | Temperature Coeffcient Din 43760 | 6370 ppm/ºC
Self-Heating | Maximum Operating Current 0.3ºC/mW (Still Air) | 5 mA
Nickel RTD (PTC) Output @70°F (21.1°C) (Wire Colors) 1000 Ohms nominal
Nominal Thermistor Resistive Output @ 77°F (25°C) (Lead Wire Colors) A/1.8K: 1.8KΩ nom. A/3K: 3KΩ nom A/AN (Type III): 10KΩ nom A/10KS: 10KΩ nom A/100KS: 100KΩ nom A/20K: 20KΩ nom A/CP (Type II): 10KΩ nom A/AN-BC: 5.238KΩ nom A/CSI: 10KΩ nom

Specifications

SKUCS6288581
MPNA/3K-PO-4"-20'CL2P-HS
Alternate Part #142215
