ACI A/TTM1K-D-4"-4-BB

Name: ACI A/TTM1K-D-4"-4-BB
Brand: ACI
SKU: CS6288549
Availability: OutOfStock

SKU: CS6288549MPN: A/TTM1K-D-4"-4-BBAlternate Part #: 142123

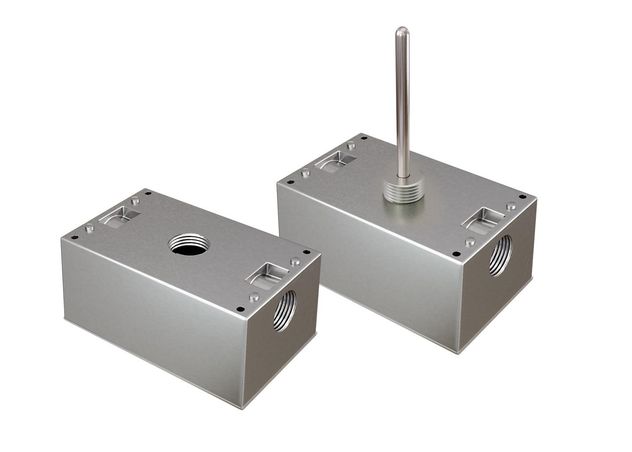

Transmitter w/ 1,000 Ohm RTD (NIST Cert), Duct, 4”, NEMA 3R Enclosure, 4-20mA Output

ACI A/0.1AN-INW-4"-BB, A/0.1CP-INW-2.5"-BB, A/0.1CP-INW-4 -BB, A/0.1CP-INW-4"-BB-NIST, A/0.1CP-INW-6"-BB, A/1.8K-D-12"-BB, A/1.8K-D-4"-BB, A/1.8K-INW-12"-BB, A/1.8K-INW-2.5"-BB, A/1.8K-INW-4"-BB, A/1.8K-INW-6"-BB, A/1.8K-RA-24"-BB, A/100-2W-D-12"-BB, A/100-2W-D-6"-BB, A/100-2W-INW-2.5"-BB

Product Details

Transmitter w/ 1,000 Ohm RTD (NIST Cert), Duct, 4”, NEMA 3R Enclosure, 4-20mA Output

Product Configuration

Length	4”
Sensor	TTM1K (XMTR, 1K Ω, NIST)
Enclosure	Aluminum, NEMA 3R

Product Family Specifications

Stability	+/- 0.03% after 1000 Hours @ 300ºC (572ºF)
Sensor Type	Platinum RTD
Number Wires	Two
Sensor Curve	PTC (Positive Temperature Coefficient)
Warm Up Time	10 Minutes \| Drift+/- 0.1%
Thermal Drift	Temp. Spans \< 100ºF (38ºC): +/- 0.04%/ºF Temp. Spans > 100ºF (38ºC): +/- 0.02% Temperature Drift is referenced to 71ºF nominal calibration temperature
Output Signals	Current: 4-20 mA (2-Wire Loop Powered) Voltage: 1-5 VDC or 2-10 VDC (3-Wires)
Probe Diameter	0.250” (6.35mm)
Probe Material	304 Stainless Steel
Agency Approvals	RoHS2, WEEE
Lead Wire Colors	A/TT100/TTM100 Series: Brown/Brown A/TT1K/TTM1K Series: Black/Black
Conductor Material	Silver Plated Copper
Number Sensing Points	One
Connections \| Wire Size	Screw Terminal Blocks (Polarity Sensitive) \| 16 AWG (1.31 mm2) to 26 AWG (0.129 mm2)
Maximum Load Resistance	(Terminal Voltage - 8.5 V) \| 0.020 A
Operating Humidity Range	10 to 90% RH, non-condensing
Min/Max Temperature Spans	Minimum Temp. Span: 50ºF (28ºC) Maximum Temp. Span: 500ºF (260ºC)
Storage Temperature Range	-40 to 85ºC (-40 to 185ºF)
Operating Temperature Range	-40 to 200ºC (-40 to 392ºF)
Sensor Tolerance \| Accuracy	+/- 0.06% Class A \| (Tolerance Formula: +/- ºC \= (0.15ºC + (0.002 * \|t\|)) where \|t\| is the absolute value of Temperature above or below 0ºC in ºC)
Enclosure Temperature Rating	“-GD” Enclosure: -40 to 115ºC (-40 to 239ºF), Galvanized Steel, NEMA 1 (IP10) “-PB” Enclosure: -30 to 100ºC (-22 to 212ºF), ABS Plastic, UL94-5VB, Plenum Rated “-BB” Enclosure: -40 to 115ºC (-40 to 239ºF), Aluminum, NEMA 3R (IP14) “-4X” Enclosure: -40 to 70ºC (-40 to 158ºF), Polystyrene Plastic, NEMA 4X (IP66)
Lead Length \| Conductor Size	14” (35.6 cm) \| 22 AWG (0.65mm)
Sensor Output @ 0ºC (32ºF)	A/TT100/TTM100 Series: 100 Ohms nominal A/TT1K/TTM1K Series: 1000 Ohms nominal
Terminal Block Torque Rating	0.37 ft-lb (0.5 Nm ) nominal
Calibrated Accuracy \| Linearity	Temp. Spans \< 500ºF (260ºC): +/- 0.2% Temp. Spans > 500ºF (260ºC): +/- 0.5% Transmitter’s calibrated at 71ºF (22ºC) nominal
Response Time (63% Step Change)	8 Seconds nominal
Lead Wire Insulation \| Wire Rating	Etched Teflon (PTFE) Colored Leads \| Mil Spec 16878/4 Type E
Din Standard \| Temperature Coeffcient	DIN EN 60751 (IEC 751) \| 3850 ppm / ºC
Fitting Material \| Flammability Rating	Polyamide 66 (High Performance Nylon 66) \| UL94-HB
TTM100/TTM1K NIST Certification Points	3 Point NIST: 20%, 50% \& 80% of span 5 Point NIST: 20%, 35%, 50%, 65%, 80% of span
Foam Pad Material \| Flammability Rating	Neoprene/EPDM/SBR Polymer \| UL94-HBF; FMVSS-302; MIL-R-6130C
Transmitter Operating Temperature Range	-40ºF (-40ºC) to 185ºF (85ºC)
Transmitter Supply Voltage \| Supply Current	+8.5 to 32 VDC (Reverse Polarity Protected) \| 25 mA minimum 250 Ohm Load: +13.5 to 32 VDC 500 Ohm Load: +18.5 to 32 VDC
Matched Calibrated Temperature Spans (A/TTM models) Range	-45 to 155ºC (-49 to 311ºF)
