ACI A/1K-3W-LT-INW-6"-GD

SKU: CS6288331MPN: A/1K-3W-LT-INW-6"-GDAlternate Part #: 140458

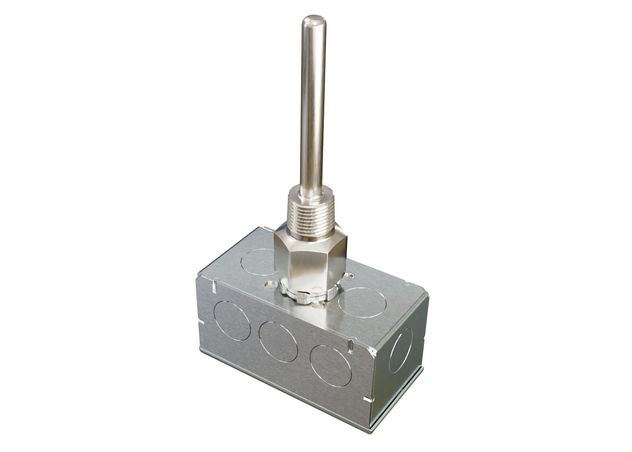

1,000 Ohm (Three Wires) RTD, Low Temperature Immersion, No Well, 6”, Galvanized Enclosure

ACI A/0.1AN-INW-4"-GD, A/0.1AN-INW-6"-GD, A/0.1AN-INW-6"-GD-NIST, A/0.1CP-INW-12"-GD, A/0.1CP-INW-2.5"-GD, A/0.1CP-INW-2.5"-GD-NIST, A/0.1CP-INW-4"-GD, A/0.1CP-INW-4"-GD-NIST, A/0.1CP-INW-6"-GD, A/0.1CP-INW-6"-GD-NIST, A/0.1CP-INW-8"-GD, A/1.8K-INW-12"-GD, A/1.8K-INW-2.5"-GD, A/1.8K-INW-4"-GD, A/1.8K-INW-6"-GD
Contact us for pricing and availability

Product Details

1,000 Ohm (Three Wires) RTD, Low Temperature Immersion, No Well, 6”, Galvanized Enclosure

Product Configuration

Sensor 1K-3W-LT (1,000 Ω, Low Temp)
Thermowell Type No Well
Temperature Series Low Temperature Sensor

Product Family Specifications

Stability \< 0.04 % at 1000 hours at 400ºC
Sensor Type Platinum RTD
Number Wires A/100-3W-LT-I-XX” and A/1K-3W-LT-I-xx”: Three (White / Two Red) Polarity Sensitive)
Sensor Curve PTC (Positive Temperature Coefficient)
Thermal Drift Temp. Spans \< 100ºF (38ºC): +/- 0.04%/ºF Temp. Spans > 100ºF (38ºC): +/- 0.02%
Output Signals Current: 4-20 mA (2-Wire Loop Powered) Voltage: 1-5 VDC or 2-10 VDC (3-Wires)
Probe Diameter 0.250” (6.35mm)
Agency Approvals RoHS2, WEEE
Number Sensing Points One
Connections | Wire Size Screw Terminal Blocks (Non-Polarity Sensitive) | 16 AWG (1.31 mm2) to 26 AWG (0.129 mm2)
Maximum Load Resistance (Terminal Voltage - 8.5 V) | 0.020 A
Operating Humidity Range 10 to 95% RH, non-condensing
Min/Max Temperature Spans Minimum Temp. Span: 50ºF (28ºC) | Maximum Temp. Span: 700ºF (370ºC) Transmitter’s calibrated at 71°F (22°C) nominal
Storage Temperature Range -40 to 85ºC (-40 to 185ºF)
Operating Temperature Range -198 to 150ºC (-324 to 302ºF)
Sensor Tolerance | Accuracy +/- 0.12% Class B | Class B Tolerance Formula: +/- ºC \= (0.30ºC + (0.005 * |t|)) Where |t| is the absolute value of temperature above or below 0ºC in Centigrade
Compression Fitting Material 316 Stainless Steel
Lead Length | Conductor Size 8’ (2.44 m) | 22 AWG (0.25 mm2)
Sensor Output @ 0ºC (32ºF) A/100-3W-LT-I-xx”: 100 Ohms nominal A/1K-3W-LT-I-xx”: 1000 Ohms nominal
Terminal Block Torque Rating 0.5 Nm nominal
Warm Up Time | Warm Up Drift 10 Minutes | +/- 0.1%
Calibrated Accuracy | Linearity Temp. Spans \< 500ºF (260ºC): +/- 0.2% | Temp. Spans > 500ºF (260ºC): +/- 0.5%
Lead Wire Insulation | Wire Rating Etched Teflon (PTFE) | Silver Plated Copper
Din Standard | Temperature Coeffcient DIN EN 60751 (IEC 751) | 3850 ppm / ºC
Self-Heating | Maximum Operating Current 100 Ohm RTD: 7 mW/ºC (Still Air) | 5 mA | 1K Ohm RTD: 4 mW/°C (Still Air) | 3 mA
Transmitter Supply Voltage | Supply Current +8.5 to 32 VDC (Reverse Polarity Protected) | 25 mA minimum 250 Ohm Load: +13.5 to 32 VDC 500 Ohm Load: +18.5 to 32 VDC

Specifications

SKUCS6288331
MPNA/1K-3W-LT-INW-6"-GD
Alternate Part #140458
