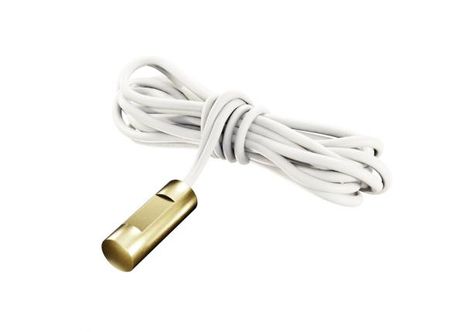

ACI A/3K-PM
SKU: CS6288117MPN: A/3K-PMAlternate Part #: 138659
3,000 Ohm Thermistor, Pipe Mount, Brass
Contact us for pricing and availability
Product Details
3,000 Ohm Thermistor, Pipe Mount, Brass
Product Configuration
| Wire | Standard Leads |
|---|---|
| Sensor | 3K (3,000 Ω) |
Product Family Specifications
| Number Wires | Two (Non-Polarity Sensitive) |
|---|---|
| Product Weight | 0.05 lbs. (22.68g) |
| Agency Approvals | CE, RoHS, WEEE |
| Conductor Material | Silver Plated Copper |
| Operating RH Range | 10 to 95% RH, Condensing |

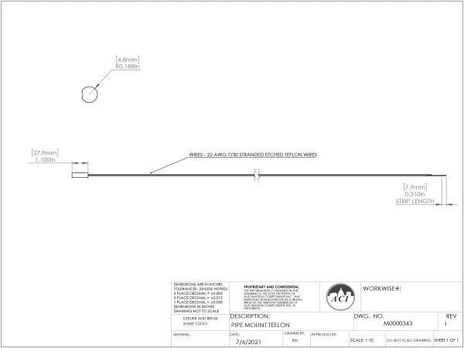

| Product Dimensions | 1.10” (27.9mm) x 0.375” (9.53mm) |
| Pipe Sizes Accepted | ½” (12.7mm) to 1” (25.4mm) |
| Number Sensing Points | One |
| Storage Temperature Range | -40 to 85ºC (-40 to 185ºF) |
| Power Dissipation Constant | 3 mW/ºC except A/1.8K Series: 1 mW/ºC | A/10K-E1 Series: 2 mW/ºC |
| Sensor Type | Sensor Curve | Thermistor | Non-Linear, NTC (Negative Temperature Coefficient) |
| Operating Temperature Range | -40 to 150ºC (-40 to 302ºF) |
| Accuracy 0-70ºC (32-158ºF) | +/-0.2ºC (+/-0.36ºF) except A/10K-E1 Series: +/-0.3ºC (+/-0.54ºF); A/1.8K Series: +/- 0.5ºC @ 25ºC (77ºF) and (+/-1.0ºC) (+/-1.8ºF) |
| Lead Length | Conductor Size | 24” (61cm) | 22 AWG (0.65mm) |
| Response Time (63% Step Change) | 20 Seconds nominal |
| Lead Wire Insulation | Wire Rating | Etched Teon (PTFE) Colored Leads | MIL-W-16878/4 (Type E) |
| Pipe Mount Sensor Enclosure Material | Brass |
| Nominal Thermistor Resistive Output @ 77°F (25°C) (Lead Wire Colors) | A/1.8K: 1.8K ohm nominal | (Red/Yellow) A/3K: 3K ohm nominal | (White/Brown) A/AN (Type III): 10K ohm nominal | (White/White) A/AN-BC: 5.238K ohm nominal | (White/Yellow) A/CP (Type II): 10K ohm nominal | (White/Green) A/CSI: 10K ohm nominal | (Green/Yellow) A/10KS: 10K ohm nominal | (White/Blue) A/10K-E1: 10K ohm nominal | (Gray/Orange) A/20K: 20K ohm nominal | (Brown/Blue) A/50K: 50K ohm nominal | (Brown/Yellow) A/100KS: 100K ohm nominal | (Black/Yellow) |
Specifications
| SKU | CS6288117 |
|---|---|
| MPN | A/3K-PM |
| Alternate Part # | 138659 |
