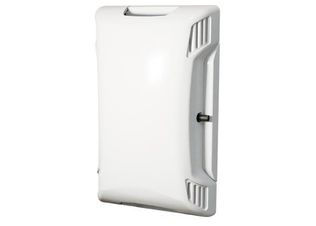

ACI A/RH2-AN-R2O

Name: ACI A/RH2-AN-R2O
Brand: ACI
SKU: CS6288063
Availability: OutOfStock

SKU: CS6288063MPN: A/RH2-AN-R2OAlternate Part #: 138450

Relative Humidity, RH Outputs: 0-5, 0-10 VDC \& 4-20mA (Default), Room (R2), ± 2% Accuracy, 10,000 Ohm Thermistor (Type III), Override

ACI A/RH2-AN-R2LO, A/RH2-AN-R2O, A/RH2-CP-R2O, A/RH3-100-2W-R2O, A/RH3-10K-E1-R2O, A/RH3-1K-NI-R2O, A/RH3-3K-R2O, A/RH3-AN-R2LO, A/RH3-AN-R2O, A/RH3-CP-R2LO, A/RH3-CP-R2O, A/RH3-R2O

Product Details

Relative Humidity, RH Outputs: 0-5, 0-10 VDC \& 4-20mA (Default), Room (R2), ± 2% Accuracy, 10,000 Ohm Thermistor (Type III), Override

Product Configuration

Enclosure	Room (R2)
Configuration	Room w/ Override
Accuracy (Humidity)	+/-2%
Sensor For Combination	AN (10K Ω, Type III)

Product Family Specifications

Output Signals	2-wire: 4 - 20 mA (Factory Default) 3-wire: 0-5 or 0-10 VDC \& 4 - 20 mA (Field Selectable)
Product Weight	A/RHx-xx-R2 Series: 0.17 lbs. (0.077 kg) A/RHx-xx-R Series: 0.17 lbs. (0.077 kg)
RH Sensor Type	Capacitive with Hydrophobic Filter
Supply Current	Voltage Output: 8 mA maximum (0.32 VA) Current Output: 24 mA maximum (0.83 VA)
Supply Voltage	4-20 mA: 250 Ohm Load: 15 - 40 VDC / 18 - 28 VAC \| 500 Ohm Load: 18 - 40 VDC / 18 - 28 VAC 0-5 VDC: 12 - 40 VDC / 18 - 28 VAC \| 0-10 VDC: 18 - 40 VDC / 18 - 28 VAC Note: Reverse Polarity Protected
Agency Approvals	CE, RoHS2, WEEE
NIST Test Points	Default Test Points: 3 Points (20%, 50% \& 80%) 1% NIST Test Points: 5 Points within selected 20% Range (ie. 30%-50% are 30, 35, 40, 45 \& 50)
Operating RH Range	0 to 95% RH, non-condensing
Product Dimensions	“-R2” Enclosure: 4.50” (114.3 mm) x 2.75” (69.85 mm) x 1.12” (28.45 mm) “-R” Enclosure: 4.50” (114.3 mm) x 2.75” (69.85 mm) x 1.12” (28.45 mm)
RH Measurement Range	0-100%
Output Load Resistance	4-20 mA: 700 Ohms maximum 0-5 VDC or 0-10 VDC: 4K Ohms Minimum
Connections \| Wire Size	Screw Terminal Blocks \| 16 (1.31 mm²) to 26 AWG (0.129 mm²)
Accuracy @ 77°F (25°C)	+/- 0.36°F (0.2°C) except 10K-E1 Series: +/- 0.54°F (0.3°C) 1.8K Series: +/- 0.9°F (0.5°C) @ 77°F (25°C) \& +/- 1.8°F (1.0°C) from 32 to 158°F (0 to 70°C)
Storage Temperature Range	-40 to 149°F (-40 to 65°C)
Enclosure Material \| Color	“-R2” Enclosure: ABS (White) “-R” Enclosure: ABS (Beige)
Power Dissipation Constant	3 mW/°C except 1.8K Series: 1 mW/°C; 10K-E1 Series: 2 mW/°C
Operating Temperature Range	35 to 122°F (1.5 to 60°C)
Terminal Block Torque Rating	4.43 to 5.31 lb-in (0.5 to 0.6 Nm)
Enclosure Flammability Rating	UL94-HB
Response Time (63% Step Change)	10 Seconds nominal
RH Transmitter Stabilization Time	30 Minutes (Recommended time before doing accuracy verification)
RH Stability \| Repeatability \| Sensitivity	Less than 2% drift / 5 years \| 0.5% RH \| 0.1% RH
Nominal Thermistor Resistive Output @ 77°F (25°C) (Lead Wire Colors)	RHx-1.8K Series: 1.8K (Red/Yellow) RHx-3K Series: 3K (White/Brown) RHx-AN Series (Type III): 10K (White/White) RHx-AN-BC Series: 5.238K (White/Yellow) RHx-CP Series (Type II): 10K (White/Green) RHx-CSI Series: 10K (Green/Yellow) RHx-10KS Series: 10K (White/Blue) RHx-10K-E1 Series: 10K (Gray/Orange) RHx-20K Series: 20K (Brown/Blue) RHx-50K Series: 50K nominal (Brown/Yellow) RHx-100KS Series: 100K (Black/Yellow)
