ACI A/TT100-BP-4-4X-6'CL2P

Name: ACI A/TT100-BP-4-4X-6'CL2P
Brand: ACI
SKU: CS6287988
Availability: OutOfStock

SKU: CS6287988MPN: A/TT100-BP-4-4X-6'CL2PAlternate Part #: 138107

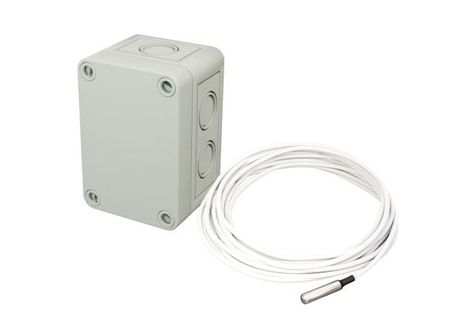

Transmitter w/ 100 Ohm RTD, Bullet Probe, 1”, 6’ Plenum Cable, NEMA 4X Enclosure, 4-20mA Output

Product Details

Transmitter w/ 100 Ohm RTD, Bullet Probe, 1”, 6’ Plenum Cable, NEMA 4X Enclosure, 4-20mA Output

Product Configuration

Wire	6’ Plenum Cable - CL2P
Sensor	TT100 (XMTR, 100 Ω)

Product Family Specifications

Number Wires	Two
Thermal Drift	Temp. Spans \< 100ºF (38ºC): +/- 0.04%/ºF \| Temp. Spans > 100ºF (38ºC): +/- 0.02% Note2: Temperature Drift is referenced to 71ºF nominal calibration temperature
Output Signals	Current: 4-20 mA (2-Wire Loop Powered) \| Voltage: 1-5 VDC or 2-10 VDC (3-Wires)
Probe Diameter	0.250” (6.35mm)
Probe Material	304 Stainless Steel
Agency Approvals	RoHS, WEEE
Lead Wire Colors	Red and Black (Non Polarity Sensitive)
Conductor Material	Tin Plated Copper
Number Sensing Points	One
Platinum RTD Stability	+/- 0.03% after 1000 Hours @ 300ºC (572ºF)
Connections \| Wire Size	Screw Terminal Blocks (Polarity Sensitive) \| 16 AWG (1.31 mm2) to 26 AWG (0.129 mm2)
Maximum Load Resistance	(Terminal Voltage - 8.5 V) \| 0.020 A
Operating Humidity Range	5 to 95% RH, non-condensing
Min/Max Temperature Spans	Minimum Temp. Span: 50ºF (28ºC) \| Maximum Temp. Span: 400ºF (204ºC)
Platinum RTD Din Standard	DIN EN 60751 (IEC 751) \| 3850 ppm / ºC
Storage Temperature Range	-40 to 80ºC (-40 to 176ºF)
Sensor Type \| Sensor Curve	Platinum RTD \| PTC (Positive Temperature Coefficient)
Lead Length \| Conductor Size	10’ (3.05 m) or 20’ (6.1 m) \| 22 AWG (0.65mm)
Platinum RTD Tolerance Class	+/- 0.06% Class A \| (Tolerance Formula: +/- ºC \= (0.15ºC + (0.002 * \|t\|)) where \|t\| is the absolute value of temperature above or below 0ºC in ºC)
Terminal Block Torque Rating	0.37 ft-lb (0.5 Nm ) nominal
Warm Up Time \| Warm Up Drift	10 Minutes \| +/- 0.1%
Calibrated Accuracy \| Linearity	Temp. Spans \< 500ºF (260ºC): +/- 0.2% Note1: Transmitter’s calibrated at 71ºF (22ºC) nominal
Response Time (63% Step Change)	8 Seconds nominal
Torque Recommendation Cord Grip	1.83 ft-lbs (2.50 Nm)
Lead Wire Insulation \| Wire Rating	FEP/FEP Teflon Unshielded Cable \| UL CL2P or CL3P; CMP C(UL) US 150ºC, FT-6
Platinum RTD Output @ 32°F (0°C)	A/TT100/TTM100 Series: 100 Ohms nominal \| A/TT1K/TTM1K Series: 1000 Ohms nominal
Sensor Operating Temperature Range	-40 to 150ºC (-40 to 302ºF)
Transmitter Operating Humidity Range	0 to 90%, non-condensing
TTM100/TTM1K NIST Certification Points	3 Point NIST: 20%, 50% \& 80% of span \| 5 Point NIST: 20%, 35%, 50%, 65%, 80% of span
Transmitter Operating Temperature Range	-40 to 200ºC (-40 to 392ºF)
Cord Grip Seal Material \| NEMA/IP Rating	Neoprene \| IP68 (NEMA 4X)
Transmitter Supply Voltage \| Supply Current	+8.5 to 32 VDC (Reverse Polarity Protected) \| 25 mA minimum 250 Ohm Load: +13.5 to 32 VDC \| 500 Ohm Load: +18.5 to 32 VDC
Cord Grip Fitting Material \| Flammability Rating	Polyamide 6.6 \| UL94-V2
Matched Calibrated Temperature Spans (A/TTM models) Range	-45 to 155ºC (-49 to 311ºF)
Enclosure Specifications (Material, Flammability, Temperature, NEMA/IP Rating)	“-GD” Enclosure: Galvanized Steel, -40 to 85ºC (-40 to 185ºF), NEMA 1 (IP10) “-PB” Enclosure: ABS Plastic, -30 to 85ºC (-22 to 185ºF), UL94-HB, Plenum Rated “-BB” Enclosure: Aluminum, -40 to 85ºC (-40 to 185ºF), NEMA 3R (IP 14) “-4X” Enclosure: Polystyrene Plastic, -40 to 70ºC (-40 to 158ºF), UL94-V2, NEMA 4X (IP 66)
