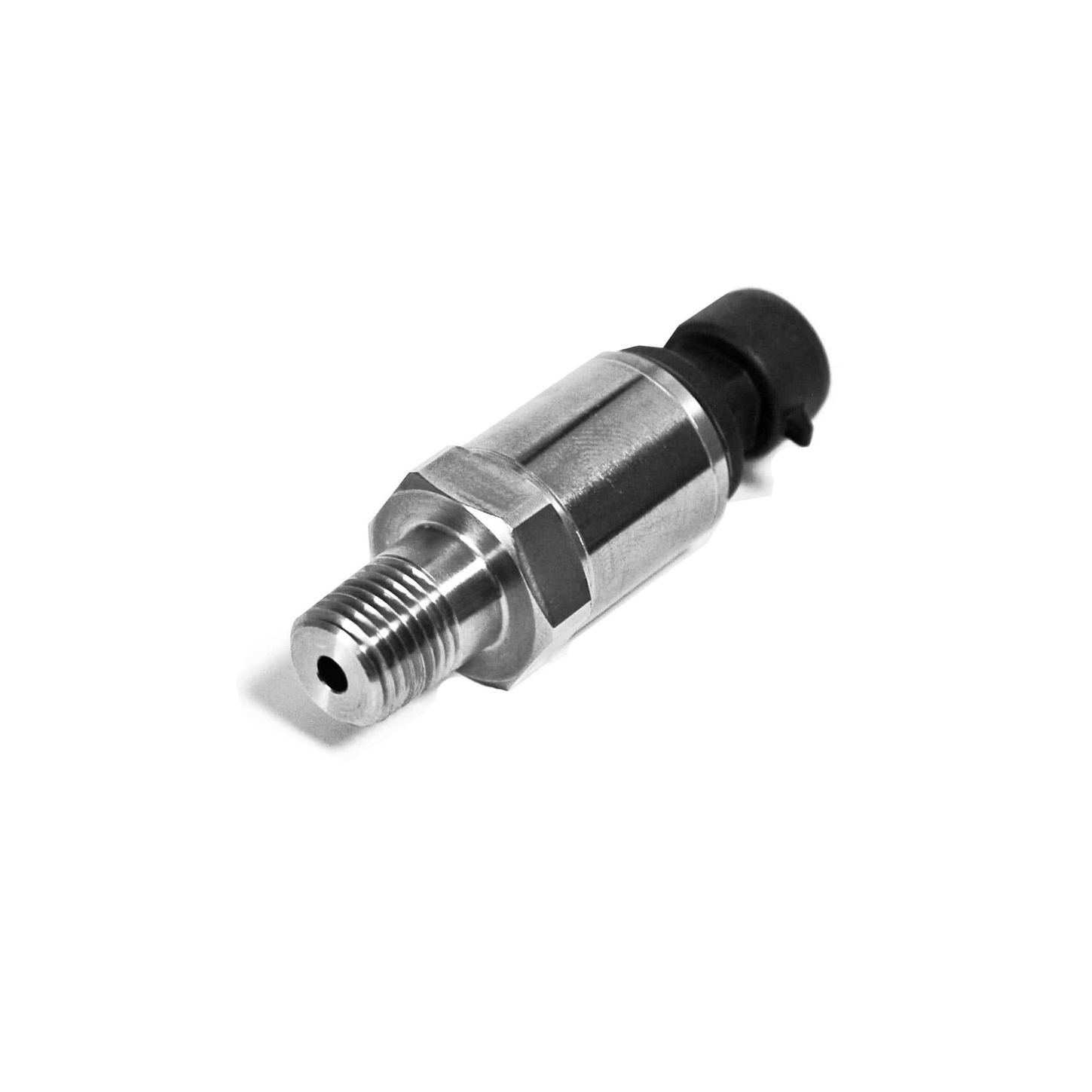

ACI GP(0-15G)-20-P

Name: ACI GP(0-15G)-20-P
Brand: ACI
SKU: CS6287625
Availability: OutOfStock

SKU: CS6287625MPN: GP(0-15G)-20-PAlternate Part #: 135751

Gage Pressure with Packard Connector, 0 to 15 psig, 4-20mA

ACI GP(0-15G)-20-P, GP(0-200G)-20-P, GP(0-300G)-20-P, GP(0-30G)-20-P, GP(0-500S)-20-P, GP(0-50G)-20-P

Product Details

Gage Pressure with Packard Connector, 0 to 15 psig, 4-20mA

Product Configuration

Span	0 to 15 PSIG
Series	GP(Stocked)
Enclosure	None
Pressure Type	Gage Pressure Transmitters

Product Family Specifications

Stability	+/- 0.03% FS @ 0 PSIG; +/- 0.12% FS @ 1000 PSIG
Media Types	Any gas or liquid compatible with 304L Stainless Steel
Response Time	\< 1 ms
Thermal Shock	50 Cycles (105ºC to -40ºC, 0.5 hr soaks @ Temp. (10s Transfer))
Burst Pressure	3x FS
Output Signals	4 to 20 mA (2-Wire, Loop Powered)
Product Weight	0.30 lbs. (0.13 kg)
Proof Pressure	3x FS
Supply Current	25 mA minimum
Supply Voltage	250 Ohm Load: +13 to 30 VDC \| 500 Ohm Load: +18 to 30 VDC
Agency Approvals	RoHS2, WEEE, ISO 9001
Housing Material	Stainless Steel
EMC Compatibility	150 V/m
Rated Application	Suitable for Indoor and Outdoor(wet) location
Product Dimensions	2.60” (66.6 mm) x 0.87” (22.23 mm)
Wiring Connections	Packard Connector (Cables ordered separately)
Process Fitting Size	¼”-18 NPT
Maximum Load Resistance	800 Ohms @ 24 VDC \| Formula: (Supply VDC – 8 VDC) / 0.020A
Operating Humidity Range	0 to 95% RH, non-condensing
Process Fitting Material	304L Stainless Steel
Storage Temperature Range	-40 to 176ºF (-40 to 80ºC)
Accuracy @ 22°C (71.6°F)	15 to 60 psig: \< +/- 1.0% FS 75 to 300 psig: \< +/- 0.5% FS 500 psisg: \< +/- 0.5% FS
Operating Temperature Range	-40 to 257ºF (-40 to 125ºC)
Reverse Polarity Protection	+/- 16 V over 5 minutes
Recommend Torque Specification	150 lbs-in (16.95 Nm)
Cable Operating Temperature Range	0ºC (32ºF) to 75ºC (137ºF)
Conductor Size \| Conductor Material	18AWG \| Tinned Plated Copper
Lead Wire Insulation \| Jacket Color	Plenum Polyvinylchloride (PVC) \| Black
Vibration (100 to 2000Hz, 20g Sinusoidal, 3 Axes)	300 Cycles (105ºC to -40ºC, 0.5 hr soaks @ Temp. (2s Transfer))

Specifications

SKU	CS6287625
MPN	GP(0-15G)-20-P
Alternate Part #	135751

ACI GP(0-15G)-20-P

Product Details

Product Configuration

Product Family Specifications

Specifications

You may also like

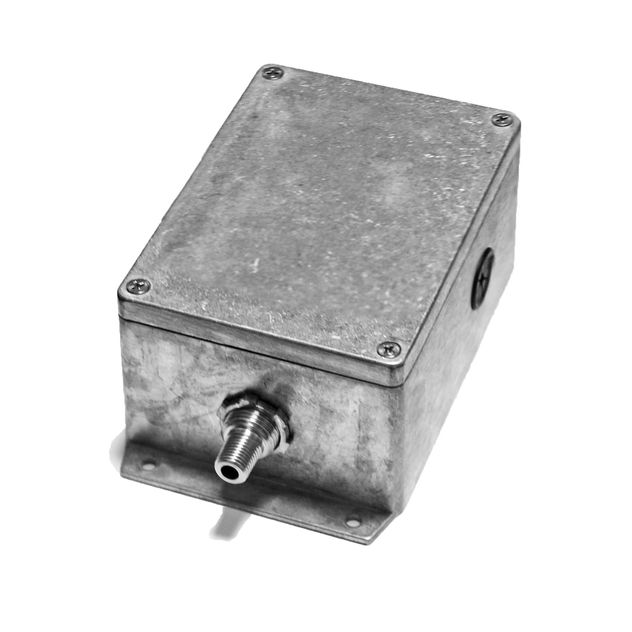

ACI A/GP(0-15G)-20-P-N4

ACI GP(0-300G)-20-P

ACI GP(0-200G)-20-P

ACI GP(0-50G)-20-P

ACI GP(0-100G)-20-P

ACI GP(0-30G)-20-P

ACI A/GP(0-200G)-20-P-N4

ACI GP(0-500S)-20-P

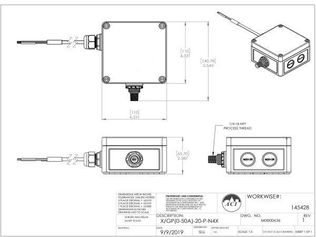

ACI A/GP(0-30G)-20-P-N4
