All ProductsACI

ACI A/10K-E1-I-2.5"-4X

SKU: CS6287593MPN: A/10K-E1-I-2.5"-4XAlternate Part #: 135488

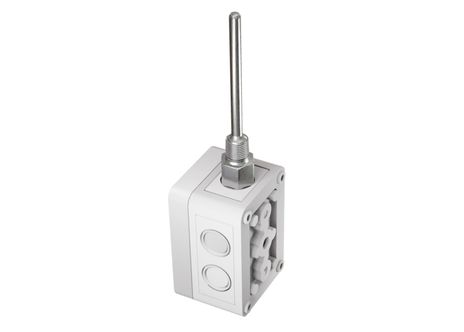

10,000 Ohm Thermistor (E1), Immersion, Welded Well, 2.5”, NEMA 4X Enclosure

ACI A/0.1CP-I-2.5"-4X, A/0.1CP-I-6"-4X-NIST, A/1.8K-I-2.5"-4X, A/1.8K-I-4"-4X, A/1.8K-I-6"-4X, A/100-2W-I-2.5"-4X, A/100-2W-I-4"-4X, A/100-2W-I-6"-4X, A/100-2W-IM-1"-4X, A/100-3W-I-2.5"-4X, A/100-3W-I-4"-4X, A/100-3W-I-6"-4X, A/100KS-I-2.5"-4X, A/100KS-I-4"-4X, A/10K-E1-I-2.5"-4X
Contact us for pricing and availability

Product Details

10,000 Ohm Thermistor (E1), Immersion, Welded Well, 2.5”, NEMA 4X Enclosure

Product Configuration

Length 2.5”
Sensor 10K-E1 (10,000 Ω)
Enclosure NEMA 4X
Thermowell Type 2 Part Fabricated

Product Family Specifications

Sensor Type Thermistor
Number Wires Two (Non-Polarity Sensitive)
Sensor Curve Non-Linear, NTC (Negative Temperature Coefficient)
Probe Diameter 0.250” (6.35mm)
Probe Material 304 Stainless Steel
Sensor Threads ½” NPS (National Pipe Straight) Male Thread
Sensor Accuracy +/-0.2ºC (+/-0.36ºF) A/10K-E1 Series: +/- 0.3ºC (+/-0.54ºF) A/1.8K Series: +/-0.5ºC @ 25ºC (77ºF) and (+/-1.0ºC) (+/-1.8ºF)
Agency Approvals CE, UKCA, RoHS2, WEEE
Conductor Material Silver Plated Copper
Number Sensing Points One
Operating Humidity Range 10 to 95% RH, non-condensing
Storage Temperature Range -40 to 85ºC (-40 to 185ºF)
Power Dissipation Constant 3 mW/ºC A/1.8K Series: 1 mW/ºC A/10K-E1 Series: 2 mW/ºC
Operating Temperature Range -40 to 150ºC (-40 to 302ºF)
Enclosure Temperature Rating “-GD” Enclosure: -40 to 115ºC (-40 to 239ºF), Galvanized Steel, NEMA 1 (IP10) “-PB” Enclosure: -30 to 100ºC (-22 to 212ºF), ABS Plastic, UL94-5VB, Plenum Rated “-BB” Enclosure: -40 to 115ºC (-40 to 239ºF), Aluminum, NEMA 3R (IP14) “-4X” Enclosure: -40 to 70ºC (-40 to 158ºF), Polystyrene Plastic, NEMA 4X (IP66)
Lead Length | Conductor Size 14” (35.6 cm) | 22 AWG (0.65mm)
Response Time (63% Step Change) 10 Seconds nominal
Lead Wire Insulation | Wire Rating Etched Teflon (PTFE) Colored Leads | Mil Spec 16878/4 Type E)
Thermowell Material | Bore Diameter 304 Series Stainless Steel | 0.260”
Fitting Material | Flammability Rating Polyamide 66 (High Performance Nylon 66) | UL94-HB
Foam Pad Material | Flammability Rating Neoprene/EPDM/SBR Polymer | UL94-HBF; FMVSS-302; MIL-R-6130C
Thermowell Instrument Thread | Process Thread ½” NPS (National Pipe Straight) Female Thread | ½” NPT (National Pipe Tapered) Male Thread

Specifications

SKUCS6287593
MPNA/10K-E1-I-2.5"-4X
Alternate Part #135488
