All ProductsACI

ACI A/10K-E1-PO-2"-10'CL2P

SKU: CS6287245MPN: A/10K-E1-PO-2"-10'CL2PAlternate Part #: 132491

10,000 Ohm Thermistor (E1), Probe Only, 2’‘, 10’ Plenum Cable

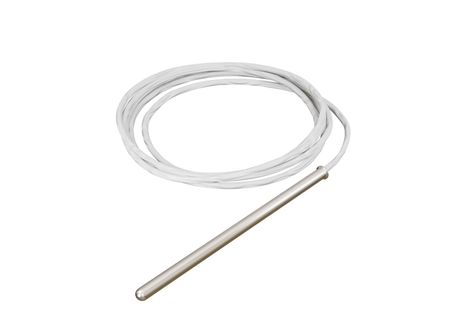

ACI A/1.8K-PO-2"-6'CL2P, A/100-2W-PO-4"-6'CL2P, A/100-3W-PO-2"-10'CL2P, A/100-3W-PO-4"-10'CL2P, A/100-3W-PO-4"-20'CL2P, A/100-3W-PO-4"-6'CL2P, A/100KS-PO-6"-10'CL2P, A/10K-E1-PO-2"-10'CL2P, A/10K-E1-PO-2"-20'CL2P, A/10K-E1-PO-4"-10'CL2P-NIST, A/10K-E1-PO-4"-20'CL2P, A/1K-2W-PO-2"-10'CL2P, A/1K-2W-PO-2"-10'CL2P-NIST, A/1K-2W-PO-2"-6'CL2P, A/1K-2W-PO-4"-10'CL2P
Contact us for pricing and availability

Product Details

10,000 Ohm Thermistor (E1), Probe Only, 2’‘, 10’ Plenum Cable

Product Configuration

Wire 10’ Plenum Cable - CL2P
Length 2”
Sensor 10K-E1 (10,000 Ω)

Product Family Specifications

Stability Sensor Dependent; Contact ACI for more information on the sensor in question.
Sensor Type Thermistor
Number Wires Two (Non-Polarity Sensitive)
Sensor Curve Non-Linear NTC (Negative Temperature Coefficient)
Probe Diameter 0.250” (6.35mm)
Probe Material 304 Stainless Steel
Product Weight 4” \= 0.028 lbs. (12.7g) 6” \= 0.036 lbs. (16.3g) 8” \= 0.044 lbs. (20g) 12” \= 0.066 lbs. (29.9g) 18” \= 0.09 lbs. (40.8g)
Agency Approvals CE, RoHS2, WEEE
Rated Application CL2P: Suitable for Indoor and Outdoor (wet) locations. Oil, Gas, Sunlight, Abrasion Acid Resistant
Conductor Material CL2P: Tinned Copper
Number Sensing Points One
Operating Humidity Range 10 to 95% RH, non-condensing
Storage Temperature Range -40 to 85ºC (-40 to 185ºF)
Power Dissipation Constant 3 mW/ºC except A/1.8K Series: 1 mW/ºC | A/10K-E1 Series: 2 mW/ºC
Operating Temperature Range CL2P: -80°C (-112°F) to 150°C (302°F)
Accuracy 0-70ºC (32-158ºF) +/-0.2ºC (+/-0.36ºF) except A/10K-E1 Series: +/- 0.3ºC (+/-0.54ºF) A/1.8K Series: +/- 0.5ºC @ 25ºC (77ºF) and (+/-1.0ºC) (+/-1.8ºF)
Lead Length | Conductor Size 4”, 6” and 8” Probes: 14” (35.6 cm) | 12” and 18” Probes: 24” (61cm) | 22 AWG (0.65mm)
Sensor Output @ 25ºC (77ºF) A/1.8K: 1.8KΩ nominal | (Red/Yellow) A/3K: 3KΩ nominal | (White/Brown) A/AN (Type III): 10KΩ nominal | (White/White) A/AN-BC: 5.238KΩ nominal | (White/Yellow) A/CP (Type II): 10KΩ nominal | (White/Green) A/CSI: 10KΩ nominal | (Green/Yellow) A/10KS: 10KΩ nominal | (White/Blue) A/10K-E1: 10KΩ nominal | (Gray/Orange) A/20K: 20KΩ nominal | (Brown/Blue) A/50K: 50KΩ nominal | (Brown/Yellow) A/100KS: 100KΩ nominal | (Black/Yellow)
Lead Wire Insulation | Wire Rating CL2P: FEP (Fluorinated Ethylene Propylene) | TYPE CL2P - TYPE CMP 22 AWG (UL), C(UL) FEP/FEP E130356 ROHS
Platinum RTD Response Time (63% Step Change) 10 Seconds nominal

Specifications

SKUCS6287245
MPNA/10K-E1-PO-2"-10'CL2P
Alternate Part #132491
