ACI A/AN-FA-12'-4X

Name: ACI A/AN-FA-12'-4X
Brand: ACI
SKU: CS6287202
Availability: OutOfStock

SKU: CS6287202MPN: A/AN-FA-12'-4XAlternate Part #: 132266

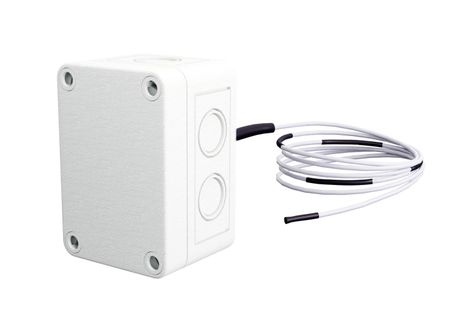

10,000 Ohm Thermistor (Type III), Flexible Cable Averaging, 12’, NEMA 4X Enclosure

ACI A/10K-E1-FA-24'-4X, A/10K-E1-FA-8'-4X, A/10KS-FA-8'-4X, A/1K-2W-FA-12'-4X, A/1K-2W-FA-24'-4X, A/1K-NI-FA-12'-4X, A/1K-NI-FA-12'-4X-NIST, A/1K-NI-FA-24'-4X, A/20K-FA-12'-4X, A/20K-FA-24'-4X, A/20K-FA-50'-4X, A/20K-FA-8'-4X, A/3K-FA-12'-4X, A/3K-FA-8'-4X, A/AN-BC-FA-12'-4X

Product Details

10,000 Ohm Thermistor (Type III), Flexible Cable Averaging, 12’, NEMA 4X Enclosure

Product Configuration

Length	12’
Sensor	AN (10K Ω, Type III)
Enclosure	NEMA 4X

Product Family Specifications

Number Wires	Two (Non-Polarity Sensitive)
Agency Approvals	RoHS, WEEE
Conductor Material	Silver Plated Copper
Operating RH Range	10 to 90% RH, non-condensing
Number Sensing Points	8’ and 12’ Lengths: Four \| 24’ and 50’ Lengths: Nine
Sensor Cable Diameter	0.170” (4.32mm) nominal
Storage Temperature Range	-20 to 75ºC (-4 to 167ºF)
Power Dissipation Constant	8’ \& 12’ Lengths: 6 mW/ºC except A/AN, A/CP, A/10KE1: 4 mW \| A/1.8K: 2 mW 24’ \& 50’ Lengths: 9 mW/ºC except A/AN, A/CP, A/10KE1: 6 mW \| A/1.8K: 3 mW
Sensor Type \| Sensor Curve	Thermistor \| Non-Linear, NTC (Negative Temperature Coefficient)
Operating Temperature Range	0 to 75ºC (32 to 167ºF)
Accuracy 0-70ºC (32-158ºF)	8’ \& 12’ Lengths: +/-0.20ºC (+/-0.36ºF); A/1.8K: +/-1.00ºC (+/-1.80ºF); A/10KS: +/-0.60ºC (+/-1.10ºF) 24’ \& 50’ Lengths: +/-0.20ºC (+/-0.36ºF); A/1.8K: +/-1.00ºC (+/-1.80ºF); A/10KS: +/-0.60ºC (+/-1.10ºF)
Lead Length \| Conductor Size	12” (30.5cm) \| 22 AWG (0.65mm)
Response Time (63% Step Change)	15 Seconds nominal
Lead Wire Insulation \| Wire Rating	Etched Teflon (PTFE) Colored Leads \| MIL-W-16878/4 (Type E)
Sensor Jacket Material \| Cable Ratings	Low Smoke PVC \| CL2P \| CMP Plenum Rated Cable
Nominal Thermistor Resistive Output @ 77°F (25°C) (Lead Wire Colors)	A/1.8K: 1.8K ohm nominal \| (Red/Yellow) A/3K: 3K ohm nominal \| (White/Brown) A/AN (Type III): 10K ohm nominal \| (White/White) A/AN-BC: 5.238K ohm nominal \| (White/Yellow) A/CP (Type II): 10K ohm nominal \| (White/Green) A/CSI: 10K ohm nominal \| (Green/Yellow) A/10KS: 10K ohm nominal \| (White/Blue) A/10K-E1: 10K ohm nominal \| (Gray/Orange) A/20K: 20K ohm nominal \| (Brown/Blue) A/50K: 50K ohm nominal \| (Brown/Yellow) A/100KS: 100K ohm nominal \| (Black/Yellow)
Enclosure Specifications (Material, Operating Temperature, NEMA Ratings)	“-GD” Enclosure: -40 to 115ºC (-40 to 239ºF), Galvanized Steel, NEMA 1 (IP10) “-PB” Enclosure: -30 to 100ºC (-22 to 212ºF), ABS Plastic, UL94-5VB, Plenum Rated “-BB” Enclosure: -40 to 115ºC (-40 to 239ºF), Aluminum, NEMA 3R (IP14) “-4X” Enclosure: -40 to 70ºC (-40 to 158ºF), Polystyrene Plastic, NEMA 4X (IP66)
