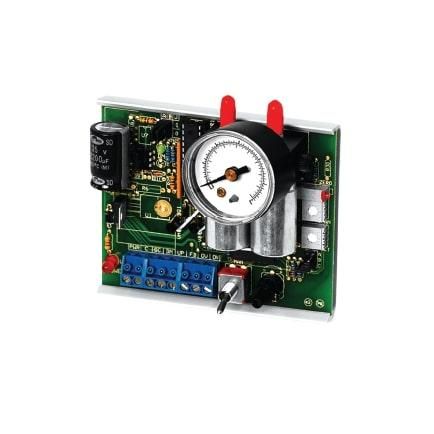

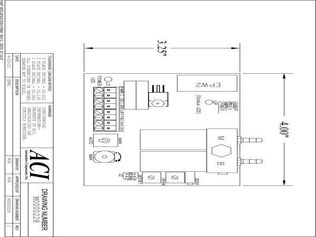

ACI EPW2G VERSION #2

Name: ACI EPW2G VERSION #2
Brand: ACI
SKU: CS6286955
Availability: OutOfStock

SKU: CS6286955MPN: EPW2G VERSION #2Alternate Part #: 130117

Pulse Width Modulation Input (10sec Duty Cycle), Pressure Output (0-15PSI), Dual Valve, Maintains Branch Pressure , Gauge, Version 2, (6 sec), (0-1...

ACI EPW VERSION #4, EPW2G, EPW2G VERSION #2, EPW2G VERSION #4, EPW2GFS, EPWG, EPWG VERSION #2, EPWG VERSION #4

Product Details

Pulse Width Modulation Input (10sec Duty Cycle), Pressure Output (0-15PSI), Dual Valve, Maintains Branch Pressure , Gauge, Version 2, (6 sec), (0-10PSI, 0-20PSI),

Product Configuration

Gauge	With Gauge
Valves	2 Valve
Input Rate Of Change	0-10s Duty Cycle, 0.023-6s

Product Family Specifications

Air Flow	Supply valves @ 20 psig (138 kPa) main/15 psig (103 kPa) out, 2300 scim Branch Line requires 2 in3 or 33.78 cm3 (min.). Branch line min. of 25 ft of ¼” O.D. poly tubing
Filtering	Furnished with integral-in-barb 80-100 micron filter (Part # PN004) Optional standard barb (PN002) with external 5 micron in-line filter (PN021)
Wire Size	16 (1.31 mm2) to 26 AWG (0.129 mm2)
Resolution	255 Steps
Connections	90° Pluggable Screw Terminal Blocks
Product Weight	EPWG: 0.63 lbs. (0.2835 Kg) \| EPW2G \& EPW2GFS: 0.76 lbs. (0.343 Kg)
Supply Current	EPW: 300mAAC, 200mADC Maximum \| EPW2: 350mAAC, 200mADC \| EPW2FS: 500mAAC, 200mADC
Supply Voltage	24 VAC (+/- 10%), 50/60 Hz, 24 VDC (+10% / -5%)
Agency Approvals	RoHS2, WEEE
Pneumatic Fitting	Removeable brass fittings for Main \& Branch in machined manifold, Plugged ⅛-27-FNPT gauge port
Input Pulse Source	Relay Contact Closure, Transistor (solid state relay) or Triac
Input Pulse Timing	Selectable Ranges-See Ordering Grid
Operating RH Range	10 to 95% non-condensing
Snaptrack Material	Polyvinyl Chloride (PVC)
Air Supply Pressure	Maximum 25 psig (172.38 kPa), minimum 20 psig (137.9 kPa)
Air Supply Consumption	2300 SCIM (37.69 Liters)
Off Time Between Pulses	10 milliseconds minimum
Output Pressure Accuracy	2% full scale at room temperature (above 1 psig or 6.895 kPa) 3% full scale across operating temperature range (above 1 psig or 6.895 kPa)
Storage Temperature Range	-20 to 150°F (-28.9 to 65.5°C)
Operating Temperature Range	35 to 120°F (1.7 to 48.9°C)
Feedback Output Signal Range	0-5 VDC \= Output Span
Terminal Block Torque Rating	0.5 Nm (Minimum); 0.6 Nm (Maximum)
Manual / Auto Override Switch	MAN function \= output can be varied \| AUTO function \= output is controlled from input signal
Snaptrack Flammability Rating	UL94 V-0
Gauge Pressure Range (Gauge Models)	0-30psig (0-200 kPa)
Gauge Pressure Accuracy (Gauge Models)	± 2.5% Midscale (± 3.5% Full Scale)
Manual / Auto Override Feedback Output	N.O. in AUTO operation (Optional: N.O. in MAN operation)
Input Pulse Trigger Level (@ Impedance)	9-24 VAC or VDC @ 750Ω nominal
Connections \| Pneumatic Tubing Size-Type	¼” O.D. nominal (⅛” I.D.) polyethylene
Output Pressure Range (Jumper Selectable)	0-10 psig (0-68.95 kPa), 0-15 psig (0-103.43 kPa) or 0-20 psig (137.9 kPa)
