ACI A/TT1K-BO-4-BB-POTTED

Name: ACI A/TT1K-BO-4-BB-POTTED
Brand: ACI
SKU: CS6286936
Availability: OutOfStock

SKU: CS6286936MPN: A/TT1K-BO-4-BB-POTTEDAlternate Part #: 129896

Transmitter w/ 1,000 Ohm RTD, Board Only, NEMA 3R Enclosure, 4-20mA Output, Potted Board, No Sensor

Product Details

Transmitter w/ 1,000 Ohm RTD, Board Only, NEMA 3R Enclosure, 4-20mA Output, Potted Board, No Sensor

Product Configuration

Sensor	TT1K (XMTR, 1K Ω)

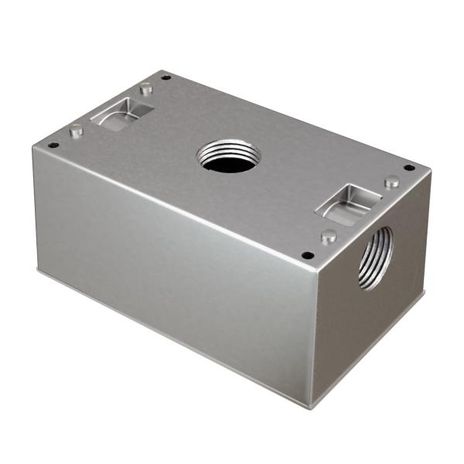

Enclosure	Aluminum, NEMA 3R

Product Family Specifications

Mounting	Three Adhesive Standoffs included
Output Signals	Current: 4-20 mA (2-Wire, Loop Powered) Voltage: 1-5 VDC or 2-10 VDC (3-Wires)
Product Weight	0.034 lbs. (15.4 g)
Agency Approvals	RoHS2, WEEE
Product Dimensions	2.30” (58.42 mm) x 1.478” (37.54 mm) x 0.775” (19.69 mm)
TT Temperature Drift	Temp. Spans \< 100ºF (38ºC): +/- 0.04%/ºF Temp. Spans > 100ºF (38ºC): +/- 0.02%
Connections \| Wire Size	Screw Terminal Blocks (Polarity Sensitive) \| 16 AWG (1.31 mm2) to 26 AWG (0.129 mm2)
Maximum Load Resistance	(Terminal Voltage - 8.5 V) / 0.020 A
Operating Humidity Range	0 to 90%, non-condensing
Storage Temperature Range	-40 to 80ºC (-40 to 176ºF)
Sensor Type \| Sensor Curve	Platinum RTD \| PTC (Positive Temperature Coefficient)
Operating Temperature Range	-40ºF to 185ºF (-40 to 85ºC)
Calibrated Temperature Spans	Minimum Temp. Span: 50ºF (28ºC) Maximum Temp. Span: 1000ºF (538ºC)
Material Flammability Rating	Nylon 66 \| UL94-V2
Terminal Block Torque Rating	0.37 ft-lb (0.5 Nm) nominal
Calibrated Accuracy \| Linearity	Temp. Spans \< 500ºF (260ºC): +/- 0.2% Temp. Spans > 500ºF (260ºC): +/- 0.5%
TT Warm Up Time \| Warm Up Drift	10 Minutes \| +/- 0.1%
Din Standard \| Temperature Coeffcient	DIN EN 60751 (IEC 751) \| 3850 ppm / ºC
TTM100/TTM1K NIST Certification Points	3 Point NIST: 20%, 50% \& 80% of span 5 Point NIST: 20%, 35%, 50%, 65%, 80% of span
Transmitter Supply Voltage \| Supply Current	+8.5 to 32 VDC (Reverse Polarity Protected) \| 25 mA minimum 250 Ohm Load: +13.5 to 32 VDC \| 500 Ohm Load: +18.5 to 32 VDC
