ACI QTS-17171X-S000000

SKU: CS6286708MPN: QTS-17171X-S000000Alternate Part #: 125937

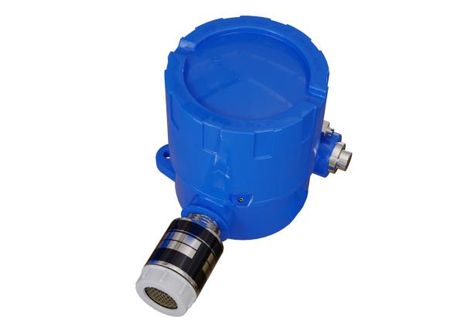

Expl Proof Sensor, Hydrogen, 0-100% LEL, 3-wire 4-20mA Output

ACI QTS-17171X-S000000
ACI QTS-17171X-S000000
ACI QTS-17171X-S000000
ACI QTS-17171X-S000000
Contact us for pricing and availability

Product Details

Expl Proof Sensor, Hydrogen, 0-100% LEL, 3-wire 4-20mA Output

Product Configuration

Gas Type Hydrogen
Configuration None

Product Family Specifications

Output 4-20 mA (3-Wire; Power, Gnd/Com, Signal)
Zero Drift \< 2% of Range / Month at 68ºF (20ºC)
Sensor Life 3 to 5 years, typical
Sensor Type Dual Element Poison Resistant Catalytic Pellistor Bead
Warm Up Time 24 Hours (Allow 24 hours before calibrating sensor after initial installation)
Product Weight 5.00 lbs (2.27 kg)
Unit Shelf Life 6 Months from date of purchase (Must be installed and operational)
Agency Approvals RoHS, CSA-4828-02 inspected to C22.2 No. 30 and C22.2 No. 142 (CSA File #: 088890 0 000)
Sensor Gas Types Hydrocarbon Combustible Gases
Factory Set Range See Gas Sensor Selection \& Specication Table on back of data sheet
Operating Pressure 14.696 psi (1.0132 bar) +/- 10%
Replacement Sensor date of purchase (Must be installed and operational) Contact ACI
Response Time (T1/e) \< 30 Seconds, typical (\< 10 seconds for 50% Full Scale Step Change)
Operating Environment Indoor use only
Maximum Load Resistance 700 Ohms (500 Ohms @ 20 VDC and 200 Ohms @ 12 VDC)
Recommended Maintenance Accuracy \& Bump test every 3 months or as required by Code (Replace sensor as needed)
Accuracy / Repeatability +/- 1% LEL Methane | +/- 1% LEL Methane
Operating Humidity Range 0 to 99% RH, non-condensing
Operating Temperature Range -40 to 122ºF (-40 to 50ºC)
Supply Voltage / Protection 12 to 30 VDC | 0.5A Socketed Pico Fuse
Terminal Block Torque Rating 0.37 ft-lb (0.502 Nm) Nominal
Storage Temperature | RH Range 32 to 68ºF (0 to 20ºC) | 15 to 90% RH, Non-Condensing
Wiring Connections / Wire Size Screw Terminal Blocks | 16 to 24 AWG (0.51 to 1.30 mm) Shielded Twisted Pair
Coverage Area / Mounting Height See Gas Sensor Selection \& Specication Table on back of data sheet
Supply Current / Power Consumption 125 mA maximum (80 mA, typical) | 3.75 Watts maximum

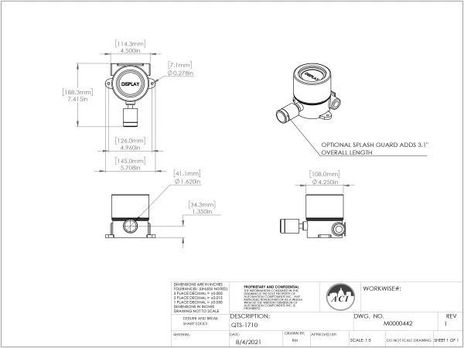

Product Dimensions (W x H x L) | Weight Wall Mount Version: 10.70” (271.78 mm) x 5.71” (145.04 mm) x 4.25” (107.95 mm) Duct Mount Version: 7.50” (190.50 mm) x 5.71” (145.04 mm) x 7.50” (190.50 mm)
Enclosure Specifications (Type, Material Type, Flammability, NEMA/IP Rating, Explosion Proof) Industrial Connection Head; Cast Aluminum Epoxy Coated; NEMA 4X (IP66) Weatherproof Rating Type 7 \& 9 Explosion Proof Class 1 Div. 1, Groups B, C, D also 316 SS Sensor Housing Group A Rated; CSA, FM (Factory Mutual), EX (Explosion Proof), UL listed

Specifications

SKUCS6286708
MPNQTS-17171X-S000000
Alternate Part #125937
