ACI A/BALCO-PO-6"

Name: ACI A/BALCO-PO-6"
Brand: ACI
SKU: CS6286701
Availability: OutOfStock

SKU: CS6286701MPN: A/BALCO-PO-6"Alternate Part #: 125659

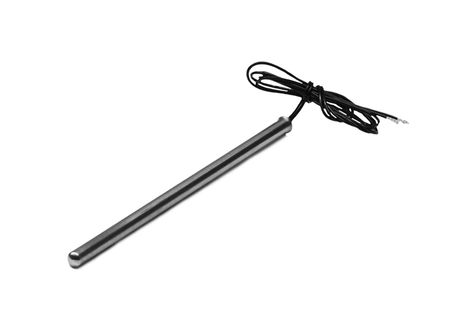

1,000 Ohm Balco RTD, Probe Only, 6”

Product Details

1,000 Ohm Balco RTD, Probe Only, 6”

Length	6”

Accuracy	70ºF (21.1ºC): +/- 1%
Stability	+/- 0.05% after 1000 Hours @ 150ºC (302ºF)
Number Wires	Two (Non-Polarity Sensitive)
Probe Material	0.250” (6.35mm)
Product Weight	4” \= 0.028 lbs. (12.7g) 6” \= 0.036 lbs. (16.3g) 8” \= 0.044 lbs. (20g) 12” \= 0.066 lbs. (29.9g) 18” \= 0.09 lbs. (40.8g)
Agency Approvals	CE, RoHS2, WEEE
Rated Application	CL2P: Suitable for Indoor and Outdoor (wet) locations. Oil, Gas, Sunlight, Abrasion Acid Resistant
Conductor Material	CL2P: Tinned Copper
Number Sensing Points	One
Temperature Coefficient	4618 ppm/ºC
Operating Humidity Range	10 to 95% RH, non-condensing
Maximum Operating Current	5mA
Storage Temperature Range	-40 to 85ºC (-40 to 185ºF)
Sensor Type \| Sensor Curve	Balco RTD \| PTC (Positive Temperature Coefficient)
Operating Temperature Range	CL2P: -80°C (-112°F) to 150°C (302°F)
Lead Length \| Conductor Size	4”, 6” and 8” Probes: 14” (35.6 cm) \| 12” and 18” Probes: 24” (61cm) \| 22 AWG (0.65mm)
Sensor Output @ 25ºC (77ºF)	1000 Ohms nominal \| (Orange/Yellow)
Response Time (63% Step Change)	8 Seconds nominal
Lead Wire Insulation \| Wire Rating	CL2P: FEP (Fluorinated Ethylene Propylene) \| TYPE CL2P - TYPE CMP 22 AWG (UL), C(UL) FEP/FEP E130356 ROHS
