ACI A/100-3W-PO-4"-CHP

SKU: CS6286598MPN: A/100-3W-PO-4"-CHPAlternate Part #: 124480

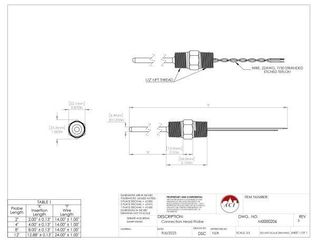

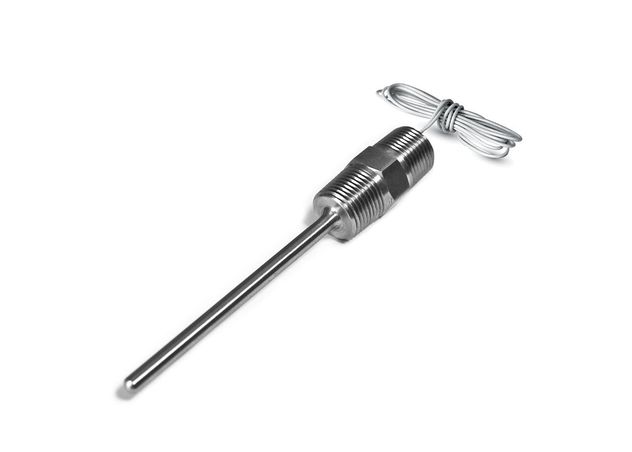

100 Ohm (Three Wires) RTD, Connection Head Probe, ½” X ½” NPT, 4”

ACI A/100-2W-PO-4"-CHP, A/100-3W-PO-4"-CHP, A/10K-E1-PO-4"-CHP, A/10K-E1-PO-8"-CHP, A/1K-2W-PO-18"-CHP, A/1K-2W-PO-2"-CHP, A/1K-2W-PO-4"-CHP, A/1K-NI-PO-12"-CHP, A/1K-NI-PO-2"-CHP, A/1K-NI-PO-8"-CHP, A/20K-PO-2"-CHP, A/20K-PO-4"-CHP, A/3K-PO-4"-CHP, A/3K-PO-4"-CHP-6'CL2P, A/AN-PO-12 -CHP
Contact us for pricing and availability

Product Details

100 Ohm (Three Wires) RTD, Connection Head Probe, ½” X ½” NPT, 4”

Product Configuration

Length 4”
Sensor 100-3W (100 Ω, 3 Wires)
Temperature Series Platinum RTD (1K \& 100 ohm)

Product Family Specifications

Stability +/- 0.05% after 1000 Hours @ 150ºC (302ºF)
Lead Length 14” (35.6 cm) or 24” (61 cm) | 22 AWG (0.65mm)
Number Wires Two (Non-Polarity Sensitive)
Probe Material 304 Stainless Steel
Product Weight 2” \= 0.284 lbs (129g) | 4” \= 0.302 lbs (137g) | 6” \= 0.32 lbs (145g) | 8” \= 0.337 lbs (153g) | 12” \= 0.357 lbs (162g) | 18” \= 0.377 lbs (171g)
Sensor Accuracy -40ºC (-40ºF): +/-1.52ºC (+/-2.73ºF) 0ºC (32ºF): +/-0.4ºC (+/-0.72ºF) 21.1ºC (70ºF): +/-0.17ºC (+/-0.34ºF) 54.4ºC (130ºF): +/-0.56ºC (+/-1.00ºF) 121ºC (250ºF): +/-1.25ºC (+/-2.25ºF)
Agency Approvals UKCA , CE, RoHS2, WEEE
Conductor Material Silver Plated Copper
Process Fitting Size ½” NPT (National Pipe Tapered) Male Thread
Number Sensing Points One
Operating Humidity Range 10 to 95% RH, non-condensing
Storage Temperature Range -40 to 85ºC (-40 to 185ºF)
Power Dissipation Constant Thermistor: 3 mW/ºC except A/1.8K Series: 1 mW/ºC | A/10K-E1 and A/CP-HT Series: 2 mW/ºC
Sensor Type | Sensor Curve Nickel RTD | PTC (Positive Temperature Coefficient)
Operating Temperature Range Thermistor:-40 to 150ºC (-40 to 302ºF) | A/CP-HT: -40 to 200ºC (-40 to 392ºF) RTD: -40 to 200ºC (-40 to 392ºF)
Accuracy 0-70ºC (32-158ºF) Thermistor: +/-0.2ºC (+/-0.36ºF) except A/10K-E1 Series: +/- 0.3ºC (+/-0.54ºF) A/1.8K Series: +/-0.5ºC @ 25ºC (77ºF) and (+/-1.0ºC) (+/-1.8ºF) A/CP-HT: +/- 1%
Sensor Output @ 0ºC (32ºF) RTD: A/100-xW-PO-4”: 100 Ohms nominal A/1K-xW-PO-4”: 1000 Ohms nominal
Sensor Output @ 25ºC (77ºF) Thermistor: A/AN (Type III): 10KΩ nominal | White/White A/CP (Type II): 10KΩ nominal | White/Green A/CP-HT (Type II): 10KΩ nominal | White/Green A/10K-E1: 10KΩ nominal | Gray/Orange A/3K: 3KΩ nominal | White/Brown A/20K: 20KΩ nominal | Brown/Blue A/1.8K: 1.8KΩ nominal | Red/Yellow
Response Time (63% Step Change) 10 Seconds nominal
Sensor Output @ 21.1ºC (70ºF) 1000 Ohms nominal
Lead Wire Insulation | Wire Rating Etched Teflon (PTFE) Colored Leads | Mil Spec 16878/4 Type E)
Din Standard | Temperature Coeffcient Din 43760 | 6370 ppm/ºC
Self-Heating | Maximum Operating Current 0.3ºC/mW (Still Air) | 5 mA

Specifications

SKUCS6286598
MPNA/100-3W-PO-4"-CHP
Alternate Part #124480
