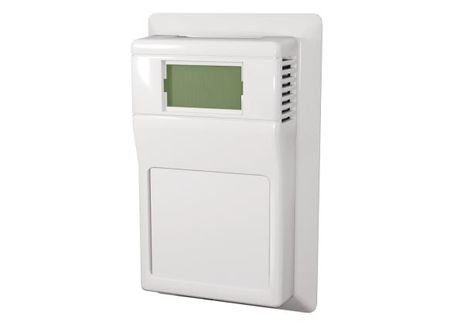

ACI A/LCD-R-420

Name: ACI A/LCD-R-420
Brand: ACI
SKU: CS6286353
Availability: OutOfStock

SKU: CS6286353MPN: A/LCD-R-420Alternate Part #: 122451

Room (R), Loop Powered LCD, 4-20mA Input, Specify Span

Product Details

Room (R), Loop Powered LCD, 4-20mA Input, Specify Span

Override	None

Input	2 Wire, 4-20 mA current loop
Product Weight	“-R/RS/RO” Series: 0.17 lbs (0.375 kg) “-RSO” Series: 0.21 lbs (0.46 kg)
Sensor Accuracy	+/- 0.5% of span
Agency Approvals	RoHS2, WEEE

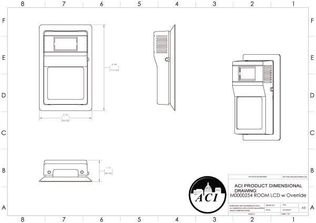

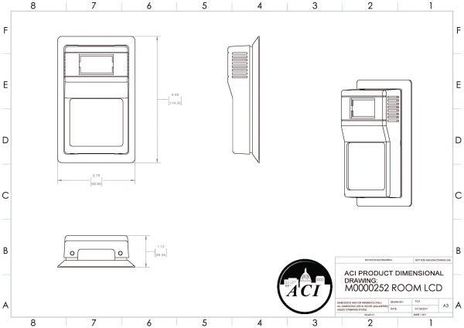

Product Dimensions	(L) 4.50” (1.00 mm) x (W) 2.78” (70.6 mm) x (H) 1.00” (25.4 mm)
Set Point Tolerance	+/- 10% \| 4-20 mA: 4 mA (Far Left) \| 20 mA Far Right (DA- Direct Acting (Default) +/- 10% \| 20 mA (Far Left \| 4 mA Far Right (RA- Reverse Acting (Optional)
Maximum Voltage Drop	+7 VDC for LCD Display
Connections \| Wire Size	Screw Terminal Blocks \| 16 (1.31 mm2) to 26 AWG (0.129 mm2)
Operating Humidity Range	5 to 95% non-condensing
Storage Temperature Range	-40 to 160ºF (-40 to 71ºC)
Enclosure Material \| Color	ABS Plastic \| Beige
Operating Temperature Range	35 to 131ºF (1.5 to 55ºC)
LCD Resolution \| Descriptors	3 ½ Digit LCD (-199.9 to 199.9) \| F (Fahrenheit), C (Centigrade) or No Descriptor
Terminal Block Torque Rating	0.5 Nm (Minimum); 0.6 Nm (Maximum)
Fitting Material \| Flammability Rating	ABS Plastic \| UL94-HB
Override Contact Type \| Contact Ratings	Dry Contact “N/O” Contact \| Minimum: 10 uA @ 1 VDC; Maximum: 50 mA @ 24 VDC
Setpoint Supply Voltage: (4 to 20 mA Only)	+24 VDC +/-10%
Override Contact Resistance \| Life Expectancy	0.1 Ohms maximum \| 100,000 Cycles
