All ProductsACI

ACI A/CP-BP-20'Z

SKU: CS6286232MPN: A/CP-BP-20'ZAlternate Part #: 121948

10,000 Ohm Thermistor (Type II), Bullet Probe, 1”, 20’ Zip Wire

ACI A/1.8K-BP-20'Z, A/100KS-BP-20'Z, A/10K-E1-BP-20'Z, A/10KS-BP-20'Z, A/1K-NI-BP-20'Z, A/20K-BP-20'-Z, A/3K-BP-20'Z, A/5K-BP-20'Z, A/CP-BP-20'Z
Contact us for pricing and availability

Product Details

10,000 Ohm Thermistor (Type II), Bullet Probe, 1”, 20’ Zip Wire

Product Configuration

Wire 20’ Zip Wire
Sensor CP (10K Ω, Type II)

Product Family Specifications

Stability Sensor Dependent; Contact ACI for more information on the sensor in question.
Sensor Type Thermistor
Sensor Curve Non-Linear, NTC (Negative Temperature Coecient)
Probe Material 304 Stainless Steel
Product Weight 0.02 lbs. (9.07g)
Agency Approvals CE, UKCA, RoHS2, WEEE
Conductor Material Silver Plated Copper

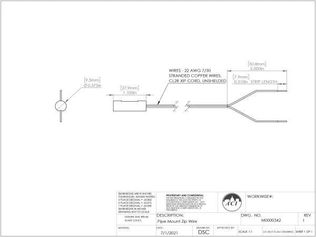

Product Dimensions 1.00” (25.4mm) x 0.250” (6.35 mm)
Number Sensing Points One
Operating Humidity Range 10 to 95% RH, non-condensing
Storage Temperature Range -40 to 85ºC (-40 to 185ºF)
Power Dissipation Constant 3 mW/ºC except A/1.8K Series: 1 mW/ºC | A/10K-E1 Series: 2 mW/ºC
Operating Temperature Range -40 to 150ºC (-40 to 302ºF)
Accuracy 0-70ºC (32-158ºF) +/-0.2ºC (+/-0.36ºF) except A/10K-E1 Series: +/- 0.3ºC (+/-0.54ºF) A/1.8K Series: +/- 0.5ºC @ 25ºC (77ºF) and (+/-1.0ºC) (+/-1.8ºF)
Lead Length | Conductor Size 24” (61cm) | 22 AWG (0.65mm)
Response Time (63% Step Change) 10 Seconds nominal
Lead Wire Insulation | Wire Rating Etched Teon Colored Leads | MIL-W-16878/4 (Type E)

Specifications

SKUCS6286232
MPNA/CP-BP-20'Z
Alternate Part #121948
