ACI A/3K-SP-OR-232

Name: ACI A/3K-SP-OR-232
Brand: ACI
SKU: CS6286089
Availability: OutOfStock

SKU: CS6286089MPN: A/3K-SP-OR-232Alternate Part #: 121087

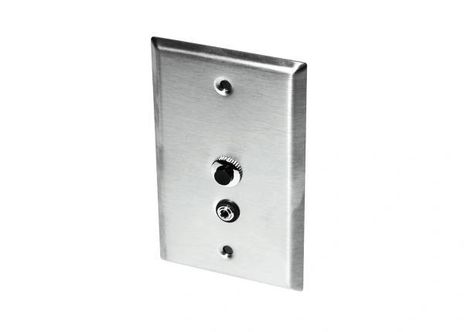

3,000 Ohm Thermistor, Wall Plate, Stainless Steel, Override, Comm Stereo Jack (3.5mm)

Product Details

3,000 Ohm Thermistor, Wall Plate, Stainless Steel, Override, Comm Stereo Jack (3.5mm)

Sensor	3K (3,000 Ω)
Override	Override: Short Sensor
Enclosure	Stainless Steel
Communication Jack (Temperature)	RS232

Stability	Sensor Dependent; Contact ACI for more information on sensor in question
Sensor Type	Thermistor
Number Wires	Two (Non-Polarity Sensitive)
Sensor Curve	Non-Linear, NTC (Negative Temperature Coefficient)
Plate Material	A/XX-SP Series: 430 Stainless Steel (Brushed Stainless Steel Finish) A/XX-AP Series: Aluminum (Smooth Satin Finish, Clear Anodized)
Product Weight	A/XX-SP Series: 0.14 lbs. (63.5g) A/XX-AP Series: 0.08 lbs. (36.29g)
Agency Approvals	CE, RoHS2, WEEE
Conductor Material	Silver Plated Copper

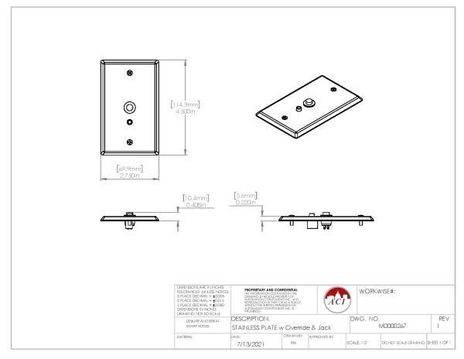

Product Dimensions	4.50” (114.3mm) x 2.78” (70.6mm) x 0.187” (4.76mm)
Number Sensing Points	One
Operating Humidity Range	10 to 95% RH, non-condensing
Storage Temperature Range	-40 to 71°C (-40 to 160°F)
Power Dissipation Constant	3 mW/°C A/1.8K Series: 1 mW/°C A/10K-E1 Series: 2 mW/°C
Operating Temperature Range	-40 to 71°C (-40 to160°F)
Accuracy 0-70ºC (32-158ºF)	+/-0.2°C (+/-0.36°F) A/10K-E1 Series: +/- 0.3°C (+/-0.54°F) A/1.8K Series: +/- 0.5°C @ 25°C (77°F) and (+/-1.0°C) (+/-1.8°F)
Lead Length \| Conductor Size	14” (35.56cm) \| 22 AWG (0.65mm)
Response Time (63% Step Change)	15 Seconds nominal
Lead Wire Insulation \| Wire Rating	Etched Teflon (PTFE) Colored Leads \| MIL-W-16878/4 (Type E)
Foam Pad Material \| Flammability Rating	Cross-Linked Polyethylene \| FMVSS-302
