ACI A/TT1K-LT-BP-4-GD-8'

Name: ACI A/TT1K-LT-BP-4-GD-8'
Brand: ACI
SKU: CS6285594
Availability: OutOfStock

SKU: CS6285594MPN: A/TT1K-LT-BP-4-GD-8'Alternate Part #: 119071

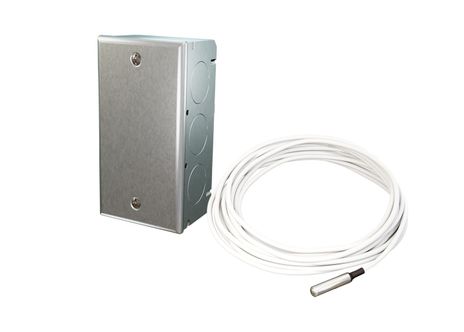

Transmitter w/ 1000 Ohm RTD, Low Temperature Bullet Probe, 1”, 316 SS, Galvanized Enclosure, 8’, 4-20mA Output

ACI A/TT100-BP-1-GD-10'CL2P, A/TT100-BP-2-GD-20'CL2P, A/TT100-BP-4-GD-20'CL2P, A/TT100-HT-BP-1-GD-8', A/TT100-HT-BP-2-GD-8', A/TT1K-BP-1-GD-10'CL2P, A/TT1K-BP-2-GD-6'CL2P, A/TT1K-BP-4-GD-10'CL2P, A/TT1K-LT-BP-4-GD-8', A/TTM100-BP-1-GD-10'CL2P, A/TTM100-BP-4-GD-10'CL2P, A/TTM100-HT-BP-4-GD-8', A/TTM1K-BP-4-GD-20 CL2P, A/TTM1K-HT-BP-4-GD-8', A/TTM1K-LT-BP-2-GD-8'

Product Details

Transmitter w/ 1000 Ohm RTD, Low Temperature Bullet Probe, 1”, 316 SS, Galvanized Enclosure, 8’, 4-20mA Output

Product Configuration

Sensor	TT1K-LT (XMTR, 1K Ω, Low Temp)
Temperature Series	Low Temperature Transmitters

Product Family Specifications

Thermal Drift	Temp. Spans \< 100ºF (38ºC): +/- 0.04%/ºF \| Temp. Spans > 100ºF (38ºC): +/- 0.02% Note2: Temperature Drift is referenced to 71ºF nominal calibration temperature
Output Signals	Current: 4-20 mA (2-Wire Loop Powered) \| Voltage: 1-5 VDC or 2-10 VDC (3-Wires)
Agency Approvals	RoHS, WEEE
Platinum RTD Stability	\< 0.04% @ 1000 hours @ 400ºC (752ºF)
Connections \| Wire Size	Screw Terminal Blocks (Polarity Sensitive) \| 16 AWG (1.31 mm2) to 26 AWG (0.129 mm2)
Maximum Load Resistance	Terminal Voltage - 8.5 V \| 0.020 A \| (775 Ohms @ 24 VDC)
Operating Humidity Range	0 to 95%, non-condensing
Storage Temperature Range	-40 to 80ºC (-40 to 176ºF)
Sensor Type \| Sensor Curve	Platinum RTD \| Linear, PTC (Positive Temperature Coefficient)
Calibrated Temperature Spans	Minimum Temp. Span: 50ºF (28ºC) \| Maximum Temp. Span: 1000ºF (538ºC)
Lead Length \| Conductor Size	8’ (2.44 m) \| 22 AWG
Platinum RTD Tolerance Class	Class B \| Accuracy Formula: +/- ºC \= (+/- 0.30ºC + (0.005 x \|t\|)) -200°C (-328°F): +/- 1.30°C (+/- 2.43°F) \| 0°C (-32°F): +/- 0.30°C (+/- 0.54°F)
Terminal Block Torque Rating	0.5 Nm nominal
Operating TT Temperature Range	-40ºF (-40ºC) to 185ºF (85ºC)
TT Warm Up Time \| Warm Up Drift	10 Minutes \| +/- 0.1%
Platinum RTD Output @ 32°F (0°C)	A/TT/TTM100-LT-BP Series: 100 Ohms nominal \| A/TT/TTM1K-LT-BP Series: 1000 Ohms nominal

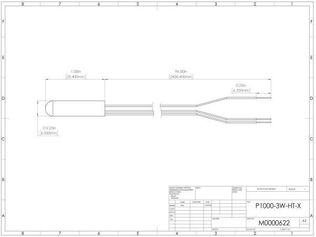

Probe Material \| Length \| Diameter	316 Stainless Steel \| 1.0” (25.4 mm) \| 0.25” (6.35 mm) nominal
Sensor Operating Temperature Range	-198 to 150ºC (-324 to 302ºF)
TT Calibrated Accuracy \| Linearity	Temp. Spans \< 500ºF (260ºC): +/- 0.2% \| Temp. Spans > 500ºF (260ºC): +/- 0.5% Note1: Transmitter’s calibrated at 71ºF (22ºC) nominal
Din Standard \| Temperature Coeffcient	DIN EN 60751 (IEC 751) \| 3850 ppm / ºC \|
TTM100/TTM1K NIST Certification Points	3 Point NIST: 20%, 50% \& 80% of span \| 5 Point NIST: 20%, 35%, 50%, 65%, 80% of span
Lead Wire Insulation \| Conductor Material	Teflon \| Silver Plated Copper
Transmitter Supply Voltage \| Supply Current	+8.5 to 32 VDC (Reverse Polarity Protected) \| 25 mA minimum 250 Ohm Load: +13.5 to 32 VDC \| 500 Ohm Load: +18.5 to 32 VDC
Platinum RTD Response Time (63% Step Change)	A/TT/TTM100-LT-BP Series: In still air: 3:40 (Min:Sec) In water: 19 (Sec) A/TT/TTM1K-LT-BP Series: In still air: 3:50 (Min:Sec) In water: 22 (Sec)
Platinum RTD (PTC) \| Number Wires (Wire Colors)	Three Conductors (White and Two Red Wires); Polarity Sensitive (Red wires tied together)
Matched Calibrated Temperature Spans (A/TTM models) Range	-45 to 155ºC (-49 to 311ºF)
Enclosure Specifications (Material, Flammability, Temperature, NEMA/IP Rating)	“-GD” Enclosure: -40 to 121ºC (-40 to 250ºF); Galvanized Steel; NEMA 1 (IP10) “-BB” Enclosure: Aluminum, -40 to 121ºC (-40 to 250ºF), Plenum Rated, NEMA 3R (IP 14)
